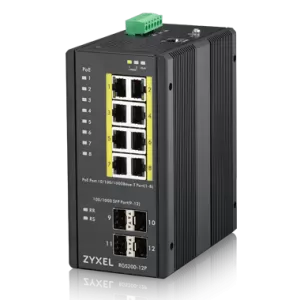

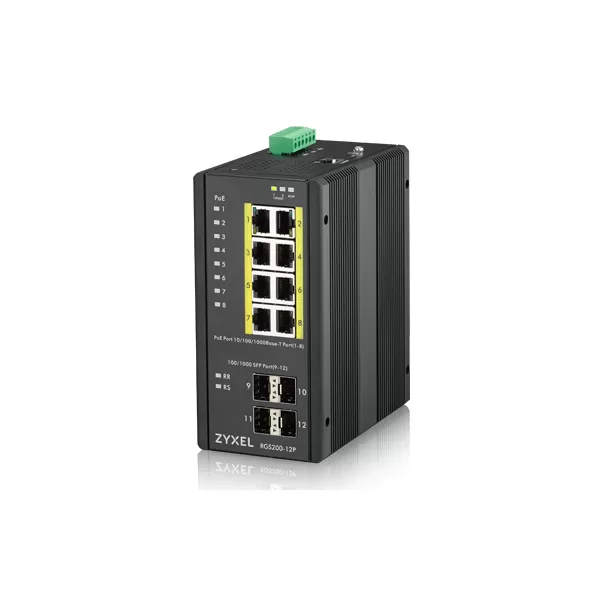

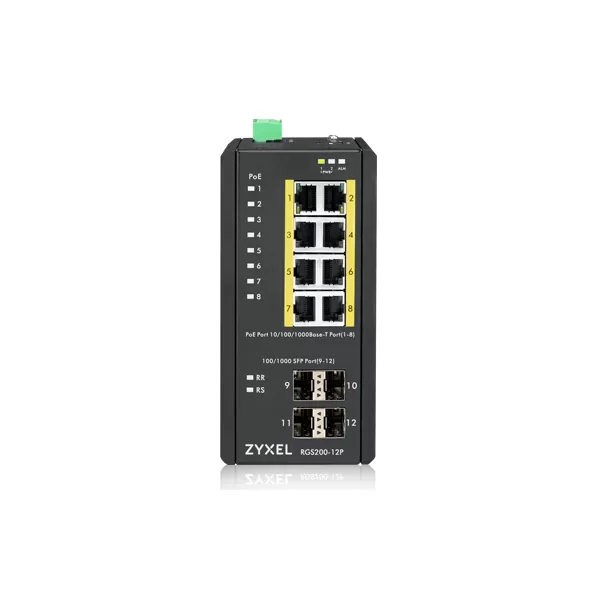

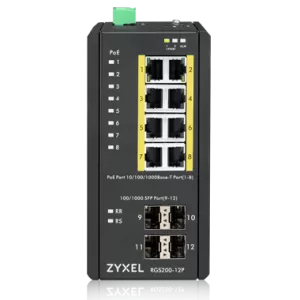

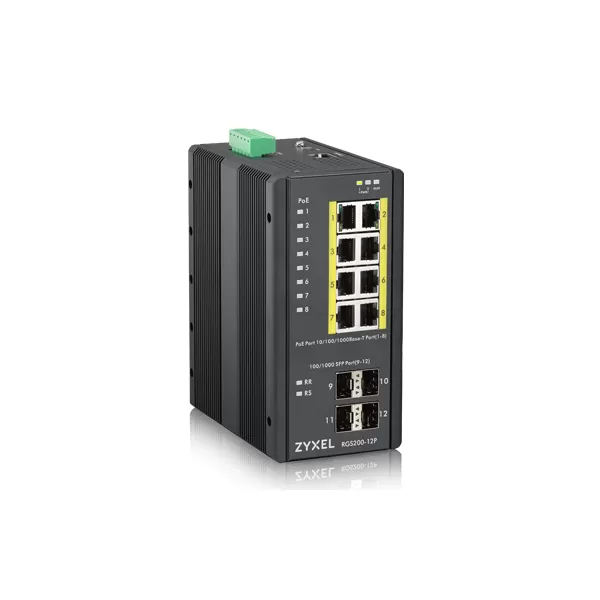

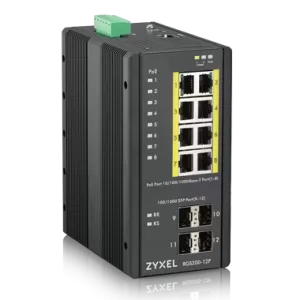

Switch ZyXEL RGS200-12P Industrial 8x GbE+4x SFP, PoE DIN rail/Wall mount, IP30
Produse asemanatoare
Traffic Control
• VLAN number (static: 1024)
• 802.1Q VLAN tagging
• GVRP
• IEEE 802.3ad LACP
• Static link aggregation (Group: 6,
member: 8)
• LA algorithm of MAC
• LA algorithm of IP
• Port isolation
• Storm control (Unicast, broadcast,
and unknown flooded traffic)
Layer 2 Multicast
• L2 multicast group (256)
• IGMP snooping (v1, v2 and v3)
• IGMP snooping and querying
• MLD snooping and proxy
• Immediate leave and leave proxy
• Throttling and filtering
Security
• IP and MAC-based access control
(128)
• ACL (support IPv4/IPv6)(256)
• 802.1X (port-base)
• Guest VLAN
• Port security
• MAC address limit
• Layer 2 MAC filtering
• Static MAC forwarding
• Multiple RADIUS servers
• RADIUS/TACACS+ authentication
• RADIUS/TACACS+ authorization
• SSL (certificate key length 2048 bits)
• SSL (support SHA-2)
• Management VLAN
• CPU defense engine
• IP source guard
• ARP inspection
QoS
• 802.1p priority queues per port
• 802.1p queuing method (scheduler)
• Input priority mapping
• Queue egress shaper
• Rate limiting, port based (accuracy
of ingress/egress is 1 kbps on TCP)
• 802.3x flow control
Class of Service (CoS)
• Voice VLAN (OUI, LLDP)
• 802.1p Class of Service (SPQ, WRR)
• Port-based CoS
• IP TOS precedence
• DSCP
• 8 queue per port
Manageability
• SNMP v1, v2c, v3
• ICMP echo reply
• Syslog
• Ethernet copper connection
diagnostic tool
Discovery
• 802.1AB LLDP
• 802.1AB LLDP MED
IPv6 management
• IPv6 over Ethernet (RFC 2464)
• IPv6 addressing architecture (RFC
4291)
• Dual stack (RFC4213)
• ICMPv6 (RFC4884)
• Static IPv6 address and prefix length
• Static IPv6 default gateway
Device Management
• Web interface
• HTTP/HTTPS
• IPv6 management (Web)
• CLI (support console)
• Telnet (5 sessions)
• SSHv2 (5 sessions)
• Firmware upgrade by web
• Firmware upgrade by TFTP
• Configuration download/upload by
Web
• Configuration download/upload by
cli via TFTP
• DHCP client
• DHCP relay
• DHCP snooping
• DHCP option 82
• SNTP
• Daylight saving setting
• Schedule PoE
• PoE MCU firmware upgradable
• Port mirroring
• Per VLAN mirroring
• Reset button (HW reset)
• Dual image
• EEE support
• Cable diagnostics
| Caracteristici Switch ZyXEL RGS200-12P Industrial 8x GbE+4x SFP, PoE DIN rail/Wall mount, IP30: | |
| Porturi cupru | 8 |
| Porturi fibra | 4 |
| Viteza | Gigabit (1000Mbps) |
| Power over Ethernet -PoE | Da |
| Management | Da |
| Rack mounting | Nu |
| Switching capacity | 24Gbps |
| Securitate | Da |
| Standarde | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3z 1000BASE-X IEEE 802.3af PoE IEEE 802.3at PoE Plus IEEE 802.1p Class of Service (CoS) prioritization Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure Store and forward N-way auto-negotiation |
| MAC Addreses | 8000 |
| Buffer Memory | 512 KB |
| Sursa de alimentare | Dual power input 12 V - 58 V DC |
| Switch modular | Nu |
| Consum electric | 255W (Max) |
| Buget PoE | 240W |
| Dimensiuni (W x D x H mm) | 77 x 127.3 x 154 |
| Greutate Colet | 1.9 |
| Greutate (Kg) | 1.45 |
| Switch ZyXEL RGS200-12P Industrial 8x GbE+4x SFP, PoE DIN rail/Wall mount, IP30 | |
| Porturi cupru | 8 |
| Porturi fibra | 4 |
| Viteza | Gigabit (1000Mbps) |
| Power over Ethernet -PoE | Da |
| Management | Da |
| Rack mounting | Nu |
| Switching capacity | 24Gbps |
| Securitate | Da |
| Standarde | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Ethernet IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3z 1000BASE-X IEEE 802.3af PoE IEEE 802.3at PoE Plus IEEE 802.1p Class of Service (CoS) prioritization Full-duplex and half duplex operation with IEEE 802.3x flow control and backpressure Store and forward N-way auto-negotiation |
| MAC Addreses | 8000 |
| Buffer Memory | 512 KB |
| Sursa de alimentare | Dual power input 12 V - 58 V DC |
| Switch modular | Nu |
| Consum electric | 255W (Max) |
| Buget PoE | 240W |
| Dimensiuni (W x D x H mm) | 77 x 127.3 x 154 |
| Greutate Colet | 1.9 |
| Greutate (Kg) | 1.45 |
