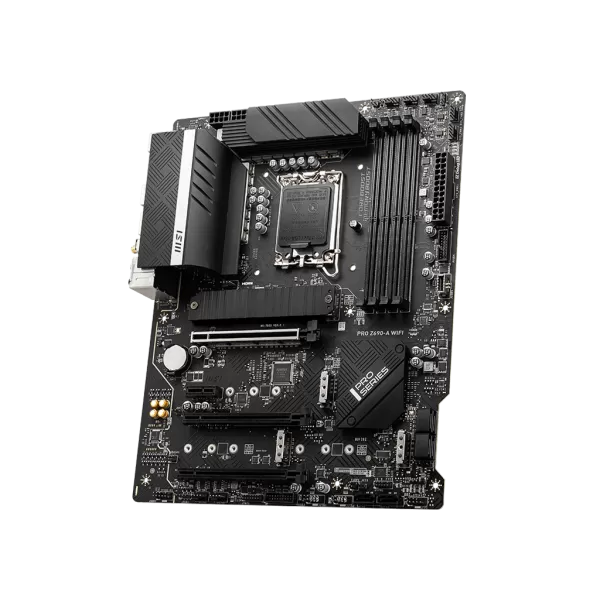

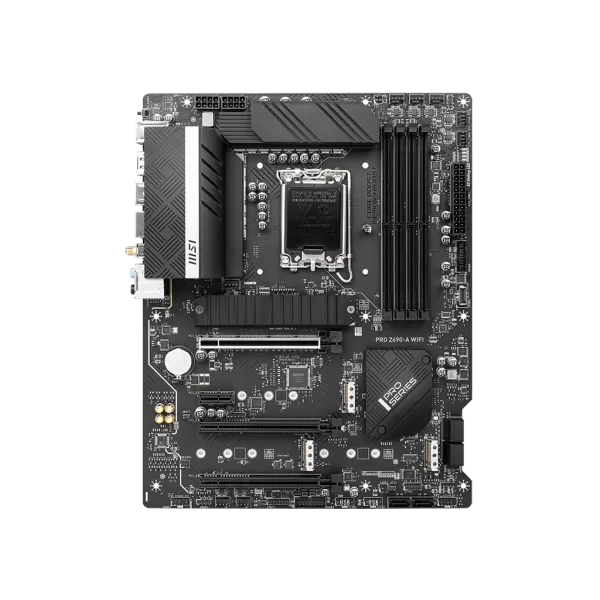

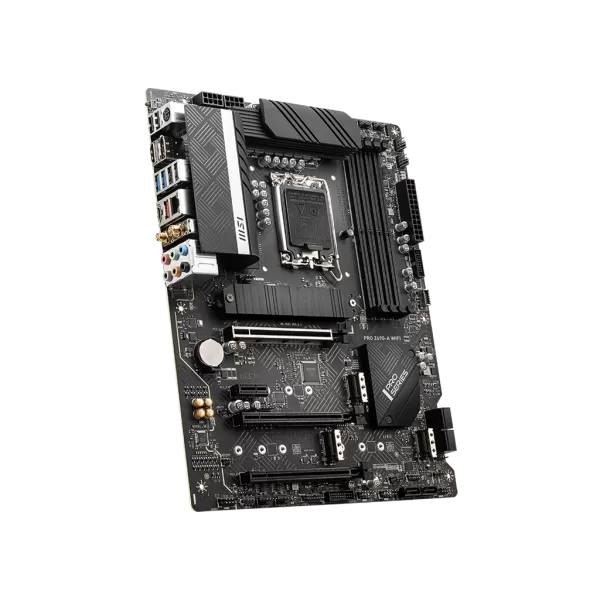

Placa de baza MSI PRO Z690-A WIFI, Socket 1700
Produse asemanatoare
Placa de baza MSI PRO Z690-A WIFI LGA 1700 911-7D25-006 / 4719072886592 SPECIFICATIONS Model Name PRO Z690-A WIFI CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z690 Chipset Graphics Interface 1x PCIe 5.0 x16 slot 1x PCIe 3.0 x16 slot Supports AMD® CrossFire™ Technology Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5-6400+MHz(OC) Expansion Slots 1x PCIe 3.0 x16 slot 1x PCIe 3.0 x1 slot Storage 3x M.2 Gen4 x4 64Gbps slots 1x M.2 Gen3 x4 32Gbps slot 6x SATA 6Gbps ports USB ports 1x USB 3.2 Gen 2x2 20Gbps (1 Type-C) 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C) 6x USB 3.2 Gen 1 5Gbps (6 Type-A) 8x USB 2.0 LAN Intel® I225-V 2.5G LAN Wireless / Bluetooth Intel® Wi-Fi 6E module, Bluetooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost https://www.msi.com/Motherboard/PRO-Z690-A-WIFI/Specification
| Caracteristici Placa de baza MSI PRO Z690-A WIFI, Socket 1700: | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

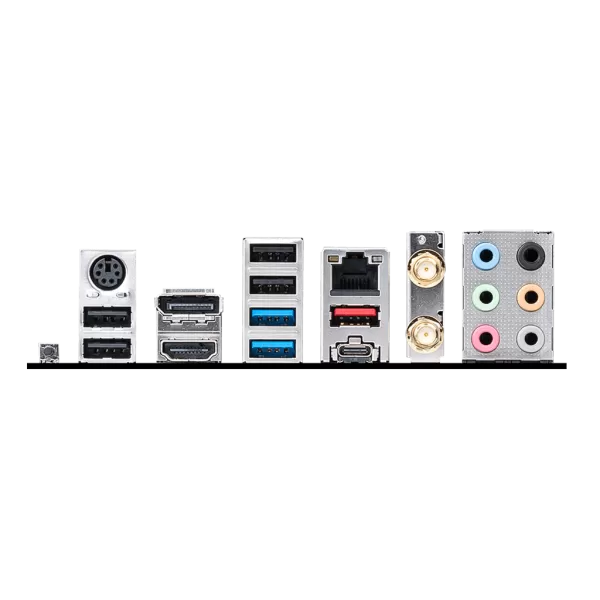

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 4 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
| Placa de baza MSI PRO Z690-A WIFI, Socket 1700 | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4800 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 4 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
