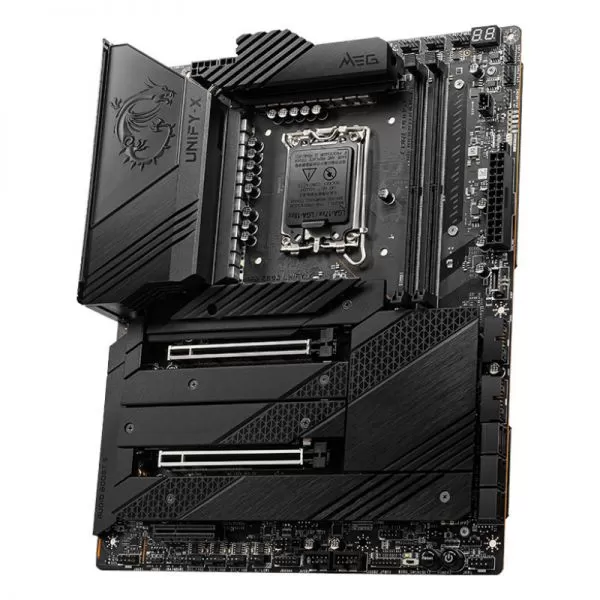

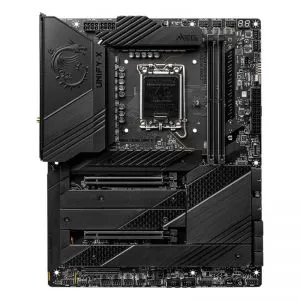

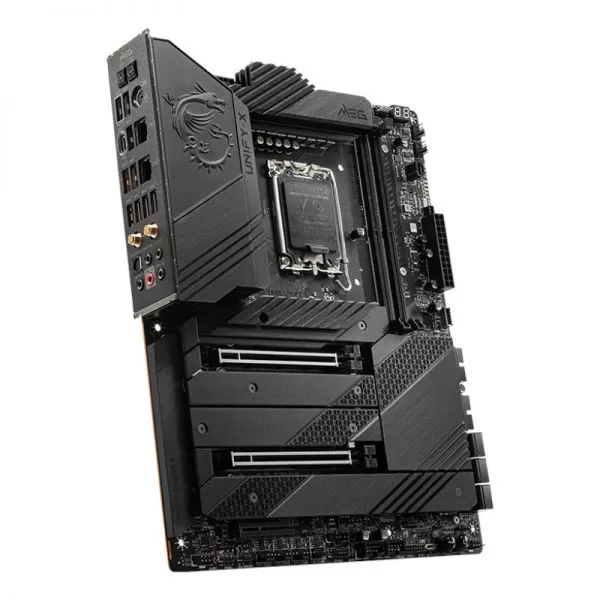

Placa de baza MSI MEG Z690 UNIFY-X, socket 170
Produse asemanatoare
Placa de baza MSI MEG Z690 UNIFY-X DDR5 LGA 1700 4719072886516 SPECIFICATIONS Model Name MEG Z690 UNIFY-X CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z690 Chipset Graphics Interface 2x PCIe 5.0 x16 slots 1x PCIe 3.0 x4 slot Support NVIDIA® SLI™ / AMD® CrossFire™ Technology Memory Support 2 DIMMs, Dual Channel DDR5-6800+MHz(OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 1x M.2 Gen3 x4 32Gbps slot, 6x SATA 6Gb/s ports USB ports 2x USB 3.2 Gen 2x2 20Gbps (2 Type-C), 7x USB 3.2 Gen 2 10Gbps (7 Type-A), 4x USB 3.2 Gen 1 5Gbps (4 Type-A), 6x USB 2.0 LAN 2x Intel® I225-V 2.5G LAN Wireless / Bluetooth Intel® Wi-Fi 6E module, Bluetooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5 https://www.msi.com/Motherboard/MEG-Z690-UNIFY-X/Specification
| Caracteristici Placa de baza MSI MEG Z690 UNIFY-X, socket 170: | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 2 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC4080 |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 8 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

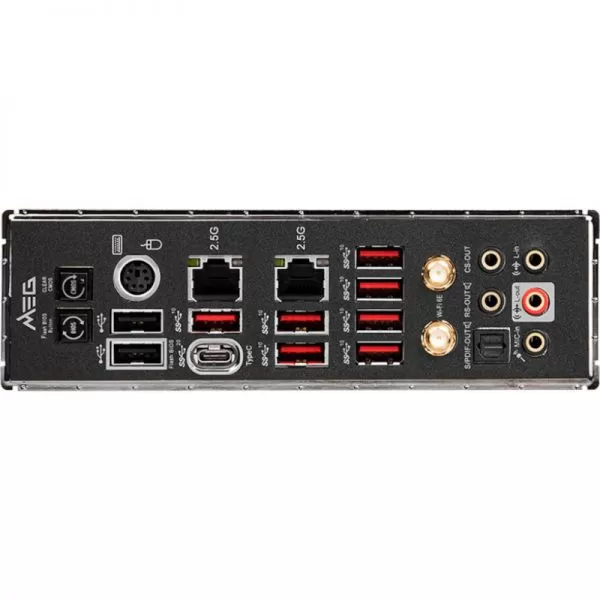

| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x4 | 1 |
| Sloturi PCI-E x16 | 2 (x16) |
| Sloturi M.2 | 5 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 cm x 24.4 cm |
| Greutate Colet | 2 |
| Placa de baza MSI MEG Z690 UNIFY-X, socket 170 | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 2 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC4080 |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 8 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x4 | 1 |
| Sloturi PCI-E x16 | 2 (x16) |
| Sloturi M.2 | 5 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 cm x 24.4 cm |
| Greutate Colet | 2 |
