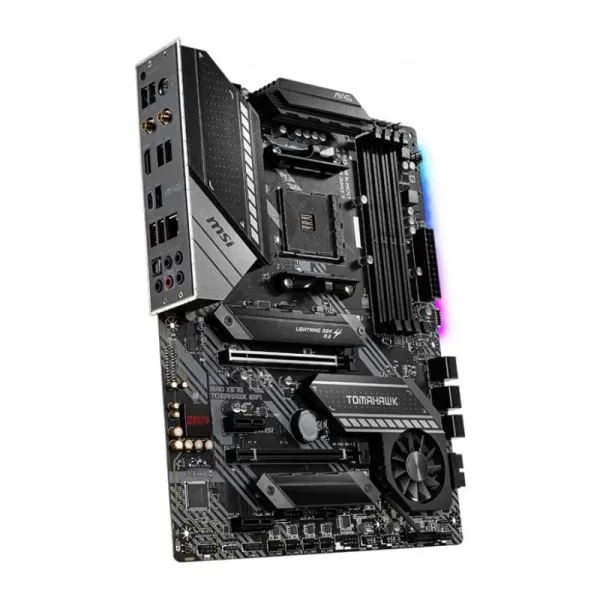

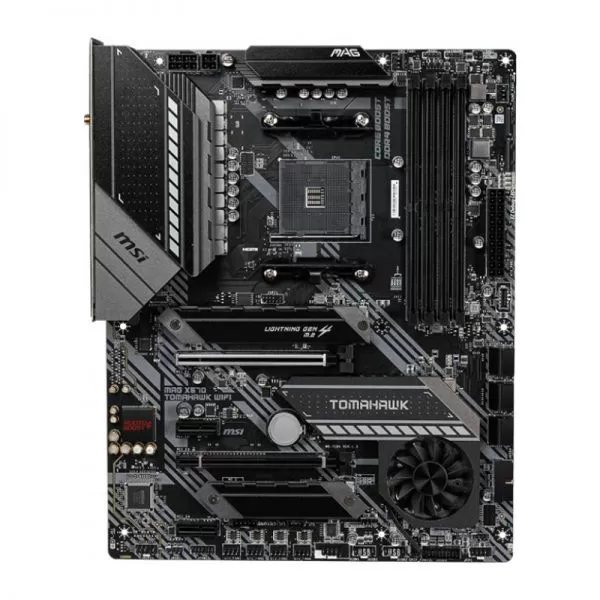

Placa de baza MSI MAG X570 TOMAHAWK WIFI, Socket AM4
Produse asemanatoare
Placa de baza MSI MAG X570 TOMAHAWK WIFI 911-7C84-001 / 4719072718985 Model Name MAG X570 TOMAHAWK WIFI CPU Support Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors CPU Socket Socket AM4 Chipset AMD® X570 Chipset Graphics Interface 2 x PCI-E 4.0 x16 slots Memory Support 4 DIMMs, Dual Channel DDR4-4600(OC) Expansion Slots 2x PCIe x1 slots Storage 2x M.2 slots, 6x SATA 6Gb/s SATA RAID RAID 0, 1, 10 – Available on ports SATA1 to SATA6 USB Ports 5x USB 3.2 Gen 2 10Gbps (2 Type-C + 3 Type-A) + 6x USB 3.2 Gen 1 5Gbps (Type-A ) + 6x USB 2.0 LAN Realtek® RTL8125B-CG 2.5G LAN Wireless / BT Intel® Wi-Fi 6 AX200, Bluetooth 5.0 Audio 8-Channel(7.1) HD Audio with Audio Boost(Realtek® ALC1200-VD1) https://www.msi.com/Motherboard/MAG-X570-TOMAHAWK-WIFI/Specification
| Caracteristici Placa de baza MSI MAG X570 TOMAHAWK WIFI, Socket AM4: | |
| CPU Socket | AM4 |
| Chipset | X570 |
| Procesoare suportate | AMD AM4 Socket Ryzen 2000/3000/5000 Series |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4600+(OC)/4533(OC)/4400(OC)/ 4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2667/2400/2133 MHz |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Graphics |
| Audio integrat | 7.1 Audio with Realtek ALC1200 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek 8125B 2.5GbE |
| Interfata Serial ATA | 6 x SATA III |
| RAID integrat | 0, 1, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 2 |
| Porturi USB 2.0 | 2 |
| HDMI | Nu |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | Nu |

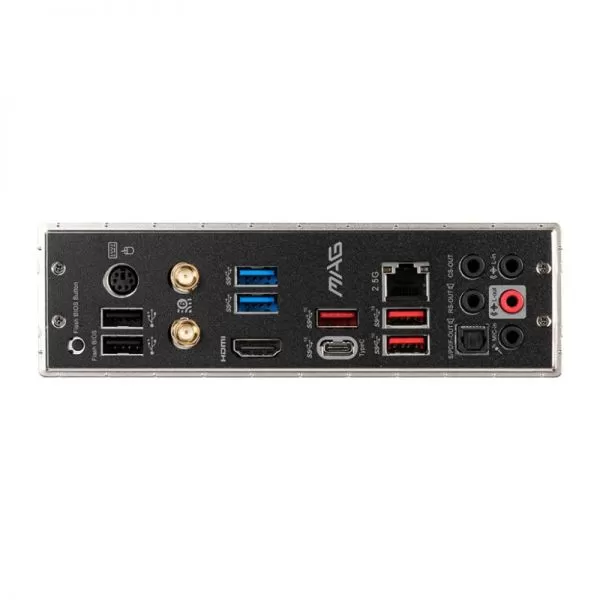

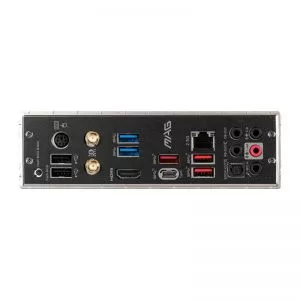

| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI | PCI Express 4.0 x16 - 2 (x16 / x4) |
| Sloturi PCI-E x1 | 2 |
| Sloturi M.2 | 2 |
| Format | ATX |
| Greutate Colet | 1 |
| Placa de baza MSI MAG X570 TOMAHAWK WIFI, Socket AM4 | |
| CPU Socket | AM4 |
| Chipset | X570 |
| Procesoare suportate | AMD AM4 Socket Ryzen 2000/3000/5000 Series |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4600+(OC)/4533(OC)/4400(OC)/ 4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2667/2400/2133 MHz |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Graphics |
| Audio integrat | 7.1 Audio with Realtek ALC1200 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek 8125B 2.5GbE |
| Interfata Serial ATA | 6 x SATA III |
| RAID integrat | 0, 1, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 2 |
| Porturi USB 2.0 | 2 |
| HDMI | Nu |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | Nu |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI | PCI Express 4.0 x16 - 2 (x16 / x4) |
| Sloturi PCI-E x1 | 2 |
| Sloturi M.2 | 2 |
| Format | ATX |
| Greutate Colet | 1 |
