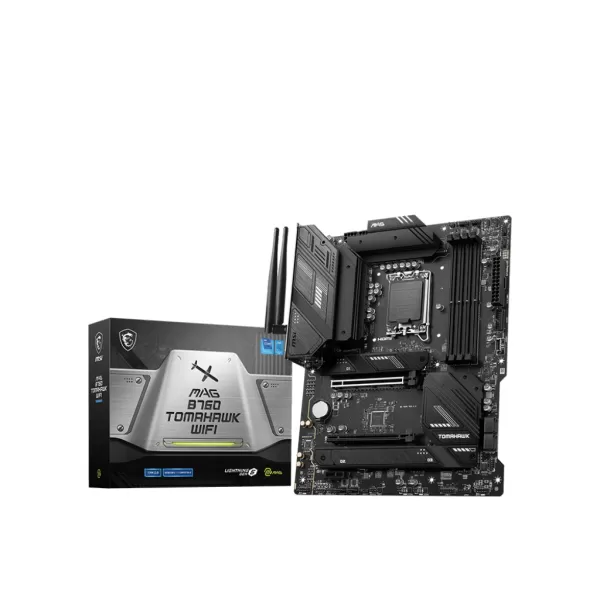

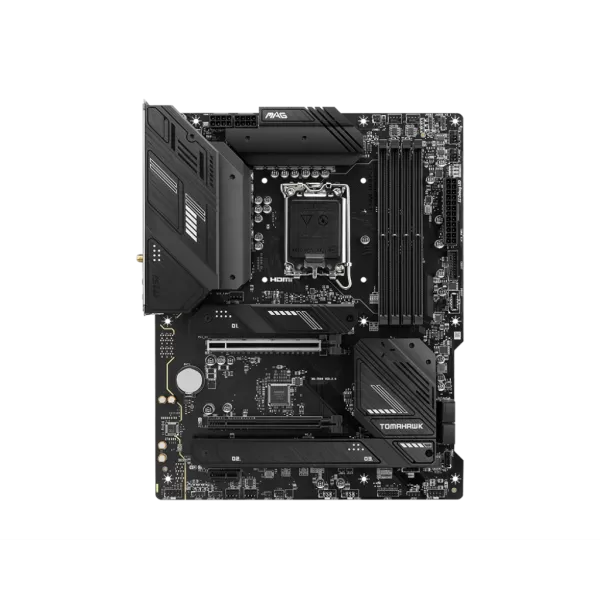

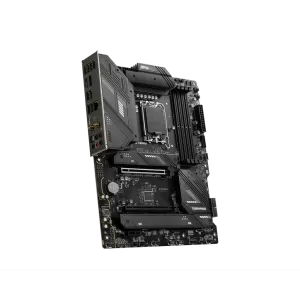

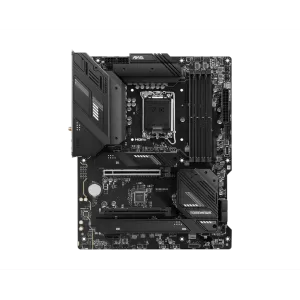

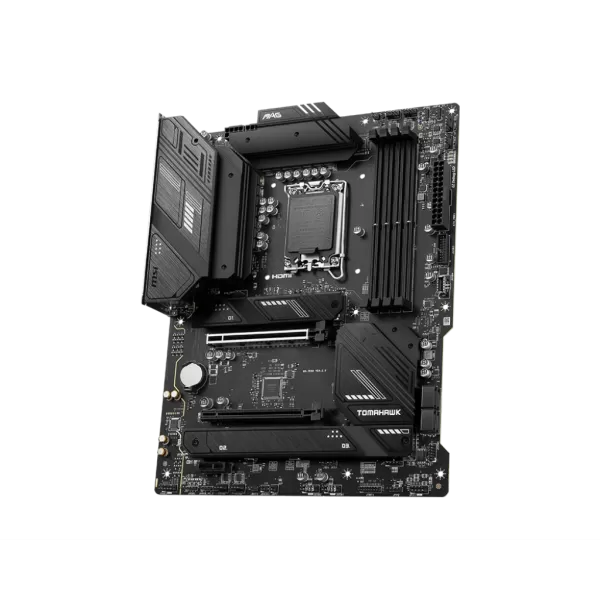

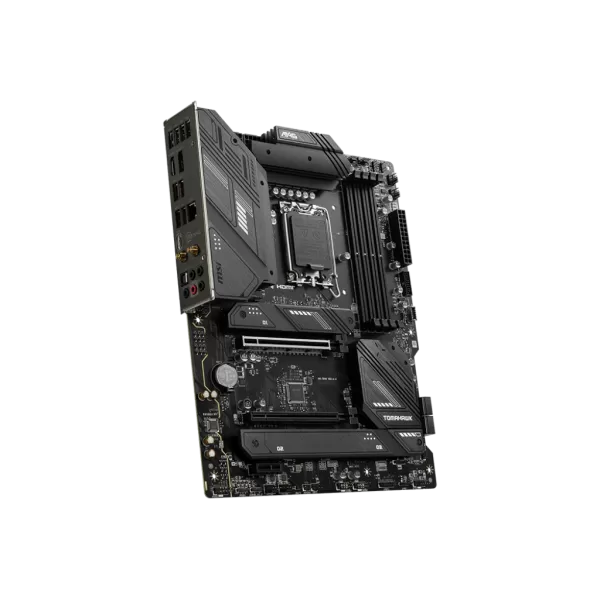

Placa de baza MSI MAG B760 TOMAHAWK WIFI, Socket 1700
Placa de baza MSI MAG B760 TOMAHAWK WIFI LGA1700 SPECIFICATIONS Model Name MAG B760 TOMAHAWK WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 3.0 x16 slot, 1x PCIe 4.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5-7000+ MHz (OC) Storage 3x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gb/s ports USB ports 1x USB 3.2 Gen 2x2 20Gbps (Type-C), 5x USB 3.2 Gen 2 10Gbps (Type-A + Type-C), 2x USB 3.2 Gen 1 5Gbps (Type-A), 8x USB 2.0 LAN Realtek® RTL8125BG 2.5Gbps LAN Wireless / Bluetooth Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost
| Caracteristici Placa de baza MSI MAG B760 TOMAHAWK WIFI, Socket 1700: | |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel 12/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Memorie maxima suportata (GB) | 192 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 5 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

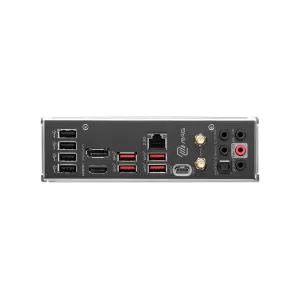

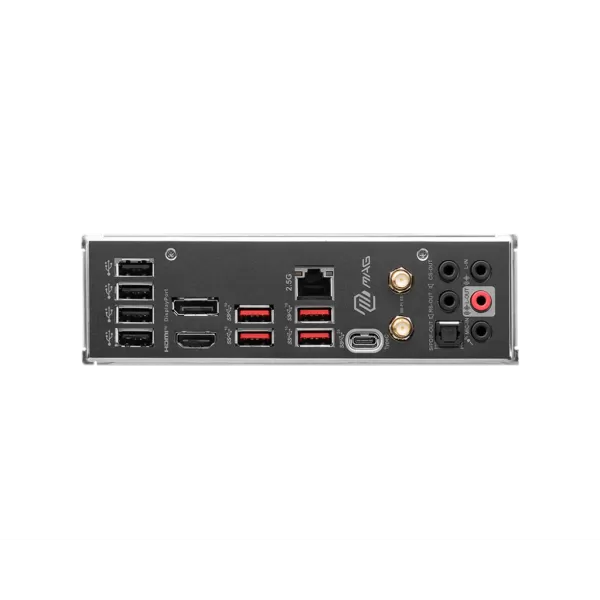

| Porturi externe | Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi M.2 | 3 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 2 |
| Placa de baza MSI MAG B760 TOMAHAWK WIFI, Socket 1700 | |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel 12/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) |
| Memorie maxima suportata (GB) | 192 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 5 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi M.2 | 3 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 2 |
