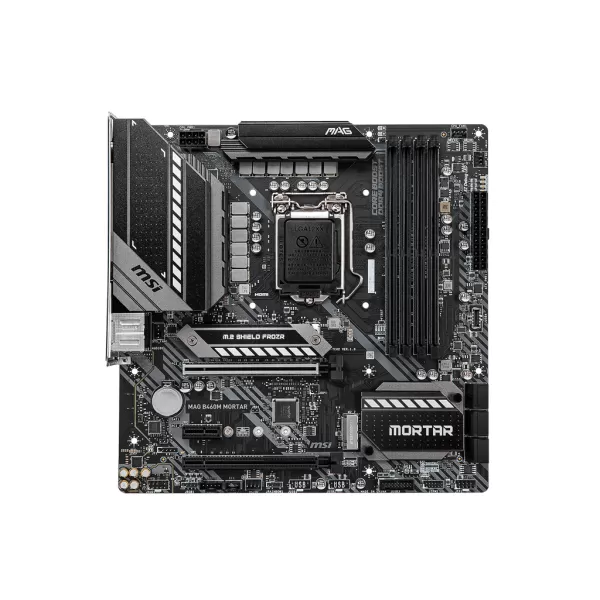

Placa de baza MSI MAG B460M MORTAR, Socket 1200
Produse asemanatoare
Placa de baza MSI MAG B460M MORTAR Socket 1200 911-7C82-001 / 4719072725020 Model Name MAG B460M MORTAR CPU Support Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors CPU Socket LGA 1200 Chipset Intel® B460 Chipset Graphics Interface 2x PCI-E 3.0 x16 slots Support 2-way AMD® CrossFire™ Technology Display Interface DisplayPort, HDMI - Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-2933Mhz (Max.) Expansion Slots 1x PCI-E 3.0 x1 slot Storage 2x M.2 slots, 6x SATA 6Gb/s SATA RAID RAID 0, 1, 5, 10 – Available on ports SATA1 to SATA6 USB ports 7x USB 3.2 Gen 1 5Gbps ports (2 Type-C + 5 Type-A) + 6x USB 2.0 ports LAN Realtek® 8125B 2.5G LAN Audio 8-Channel(7.1) HD Audio with Audio Boost (ALC1200) https://www.msi.com/Motherboard/MAG-B460M-MORTAR/Specification
| Caracteristici Placa de baza MSI MAG B460M MORTAR, Socket 1200: | |
| CPU Socket | 1200 |
| Chipset | B460 |
| Procesoare suportate | Intel 10th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 2933/2666/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC1200 |
| LAN integrat | Realtek RTL8125B |
| Interfata Serial ATA | 6 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 2 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.3 x 24.3 |
| Greutate Colet | 1 |
| Placa de baza MSI MAG B460M MORTAR, Socket 1200 | |
| CPU Socket | 1200 |
| Chipset | B460 |
| Procesoare suportate | Intel 10th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 2933/2666/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC1200 |
| LAN integrat | Realtek RTL8125B |
| Interfata Serial ATA | 6 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 2 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.3 x 24.3 |
| Greutate Colet | 1 |
