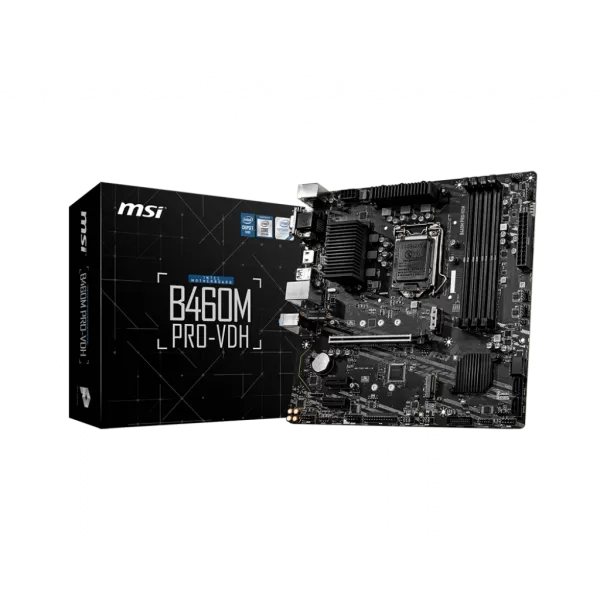

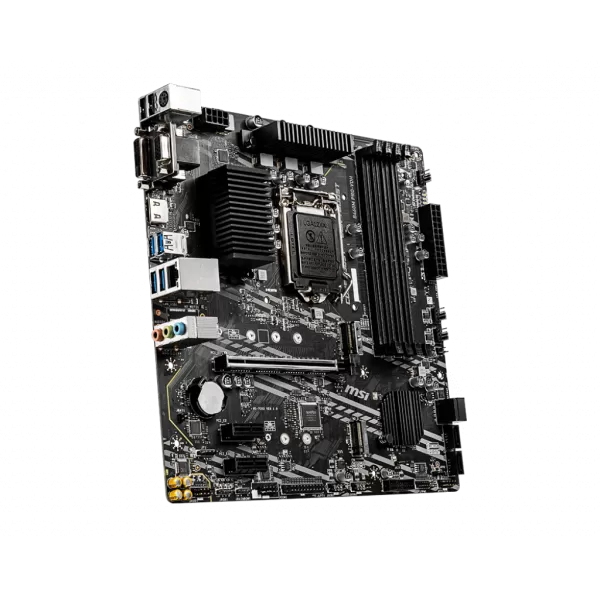

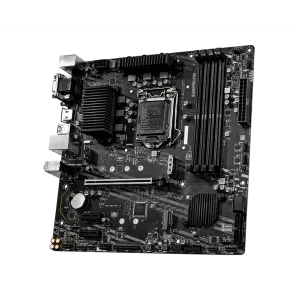

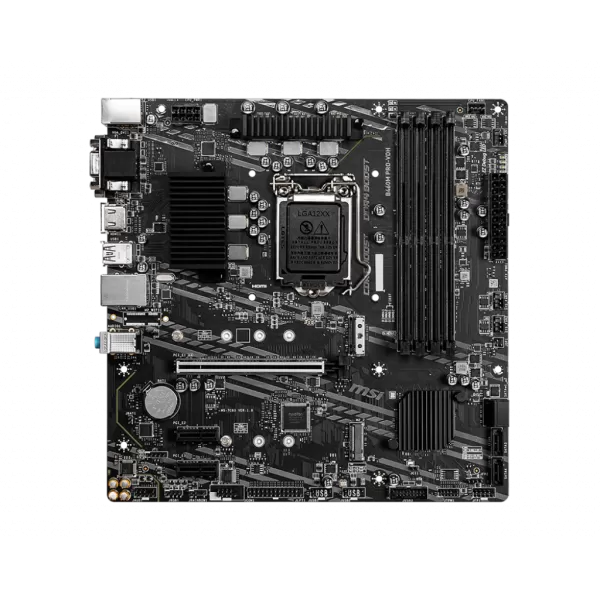

Placa de baza MSI B460M PRO-VDH, Socket 1200
Produse asemanatoare
Placa de baza MSI B460M PRO-VDH WIFI LGA 1200 911-7C83-027 / 4719072763893 SPECIFICATIONS Model Name B460M PRO-VDH WIFI CPU Support Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors CPU Socket LGA 1200 Chipset Intel® B460 Chipset Graphics Interface 1x PCI-E 3.0 x16 slot Display Interface HDMI, DVI-D, VGA - Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-2933 MHz (Max) Expansion Slots 2x PCI-E 3.0 x1 slots Storage 2x Turbo M.2 32Gb/s slots, 4x SATA 6Gb/s USB ports 6x USB 3.2 Gen 1 5Gbps (Type-A) + 6 x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Wi-Fi / BT Intel® Wireless-AC 3168 / Bluetooth 4.2 Audio 8-Channel(7.1) HD Audio with Audio Boost https://www.msi.com/Motherboard/B460M-PRO-VDH-WIFI/Specification
| Caracteristici Placa de baza MSI B460M PRO-VDH, Socket 1200: | |
| CPU Socket | 1200 |
| Chipset | B460 |
| Procesoare suportate | Intel 10th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 2933/2666/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC892/ALC897 |
| LAN integrat | Realtek RTL8111H |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | 1 |
| DVI | 1 |
| DisplayPort | Nu |

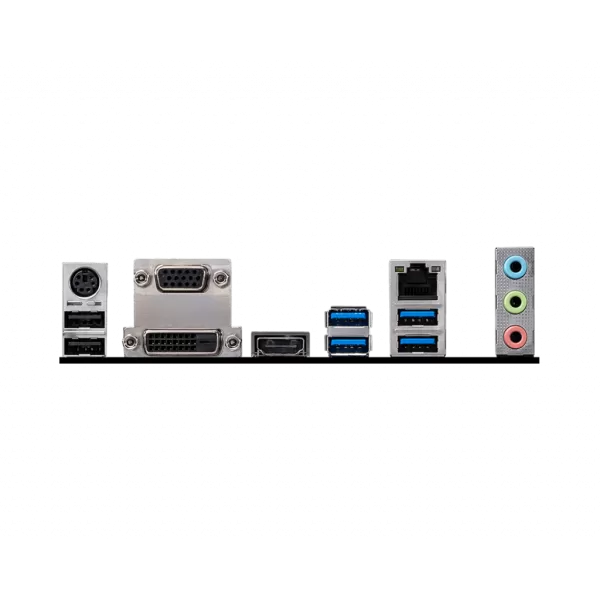

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 |
| Greutate Colet | 1 |
| Placa de baza MSI B460M PRO-VDH, Socket 1200 | |
| CPU Socket | 1200 |
| Chipset | B460 |
| Procesoare suportate | Intel 10th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 2933/2666/2400/2133 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC892/ALC897 |
| LAN integrat | Realtek RTL8111H |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | 1 |
| DVI | 1 |
| DisplayPort | Nu |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 |
| Greutate Colet | 1 |
