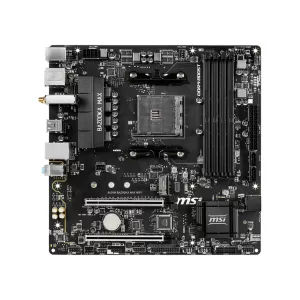

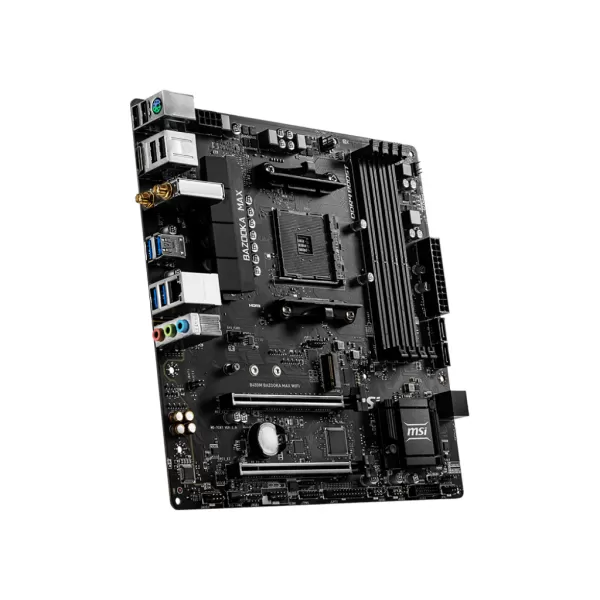

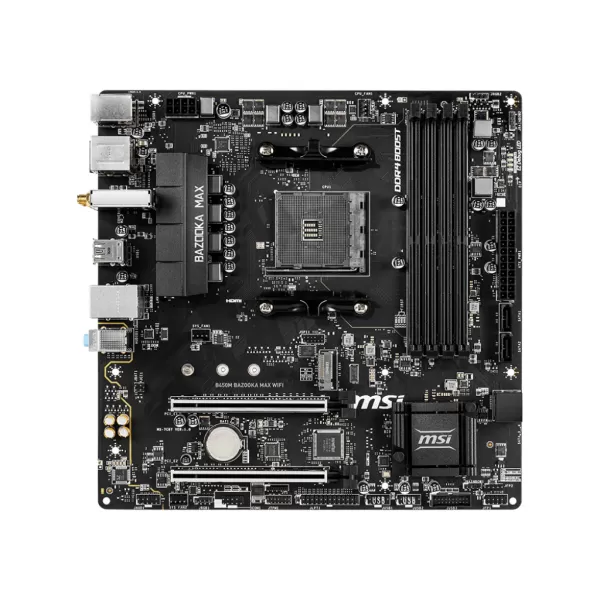

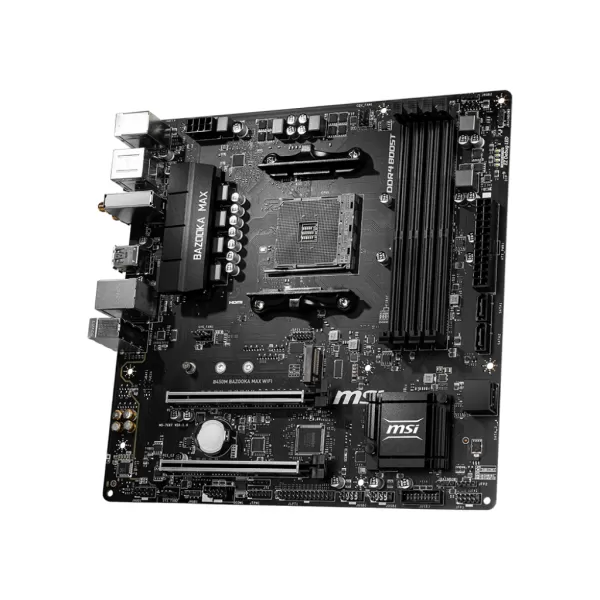

Placa de baza MSI B450M BAZOOKA MAX WIFI, Socket AM4
Produse asemanatoare
Placa de baza MSI B450M BAZOOKA MAX WIFI 911-7C87-001 / 4719072723873 SPECIFICATION Model Name B450M BAZOOKA MAX WIFI CPU Support Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 CPU Socket Socket AM4 Chipset AMD® B450 Chipset Graphics Interface 2 x PCI-E 3.0 x16 slots Memory Support 4 DIMMs, Dual Channel DDR4-4133+(OC) Storage 1 x M.2 slot, 4 x SATA 6Gb/s SATA RAID RAID 0, 1, 10 – Available on ports SATA1 to SATA4 USB ports 6 x USB 3.2 (Gen1) + 8 x USB 2.0 LAN Realtek® 8111H Gigabit LAN Audio 8-Channel(7.1) HD Audio with Audio Boost https://www.msi.com/Motherboard/B450M-BAZOOKA-MAX-WIFI/Specification
| Caracteristici Placa de baza MSI B450M BAZOOKA MAX WIFI, Socket AM4: | |
| CPU Socket | AM4 |
| Chipset | B450 |
| Procesoare suportate | AMD Ryzen 1st, 2nd and 3rd Gen / Ryzen with Radeon Vega Graphics Processors for socket AM4 |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200(OC)/ 3066(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2667(OC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Graphics |
| Audio integrat | Realtek ALC892 |
| LAN integrat | Realtek RTL8111H |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | Nu |

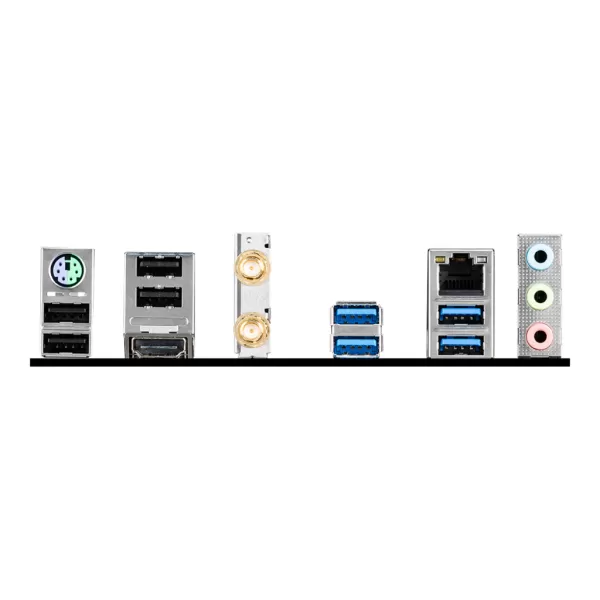

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 1 |
| Wireless | Da |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 |
| Greutate Colet | 1 |
| Placa de baza MSI B450M BAZOOKA MAX WIFI, Socket AM4 | |
| CPU Socket | AM4 |
| Chipset | B450 |
| Procesoare suportate | AMD Ryzen 1st, 2nd and 3rd Gen / Ryzen with Radeon Vega Graphics Processors for socket AM4 |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200(OC)/ 3066(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2667(OC)/ 2400(JEDEC)/ 2133(JEDEC)/ 1866(JEDEC) |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Graphics |
| Audio integrat | Realtek ALC892 |
| LAN integrat | Realtek RTL8111H |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | Nu |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x16 | 2 (x16 / x4) |
| Sloturi M.2 | 1 |
| Wireless | Da |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 |
| Greutate Colet | 1 |
