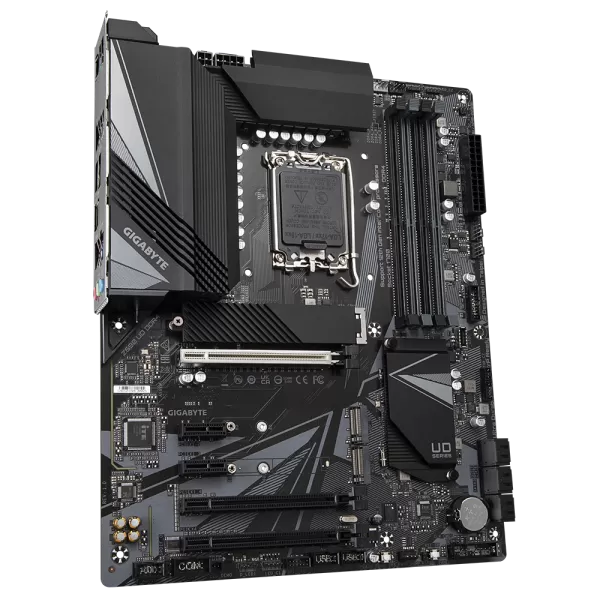

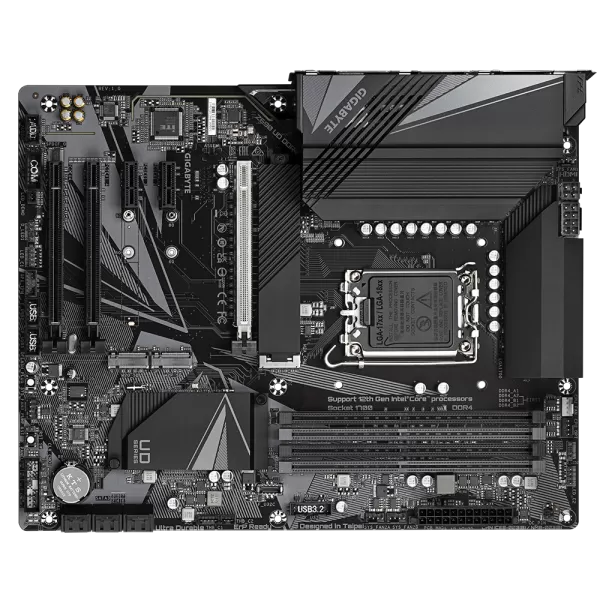

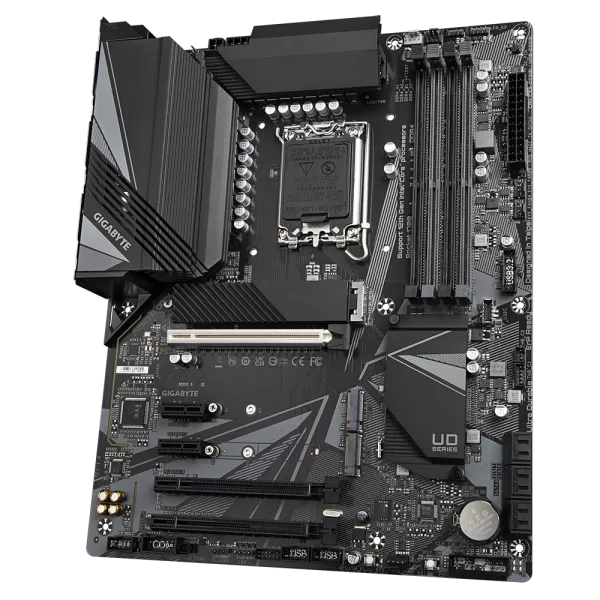

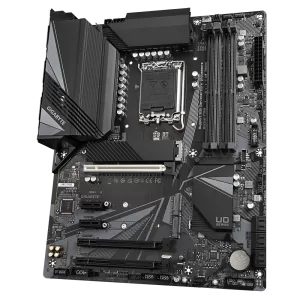

Placa de baza Gigabyte Z690 UD DDR4, Socket 1700
Produse asemanatoare
Placa de baza Gigabyte Z690 UD DDR4 LGA 1200 Intel® Z690 Motherboard with Direct 16+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, Rear USB 3.2 Gen 2x2 Type-C®, Q-Flash Plus Supports 12th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor Ultra Performance VRM Heatsinks Fast 2.5GbE LAN with Bandwidth Management 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds RGB FUSION 2.0, supports Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card https://www.gigabyte.com/Motherboard/Z690-UD-DDR4-rev-10/sp#sp
| Caracteristici Placa de baza Gigabyte Z690 UD DDR4, Socket 1700: | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek Audio |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 6 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 3 (x16/x4/x1) |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Bluetooth | Nu |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
| Placa de baza Gigabyte Z690 UD DDR4, Socket 1700 | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek Audio |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 6 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 3 (x16/x4/x1) |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Bluetooth | Nu |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
