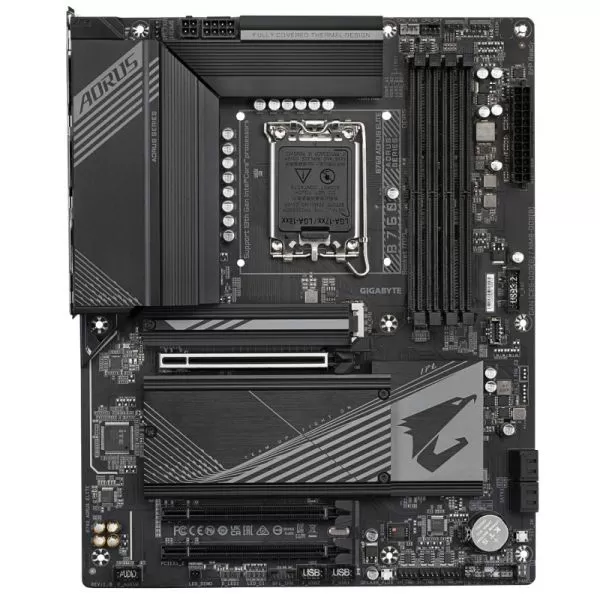

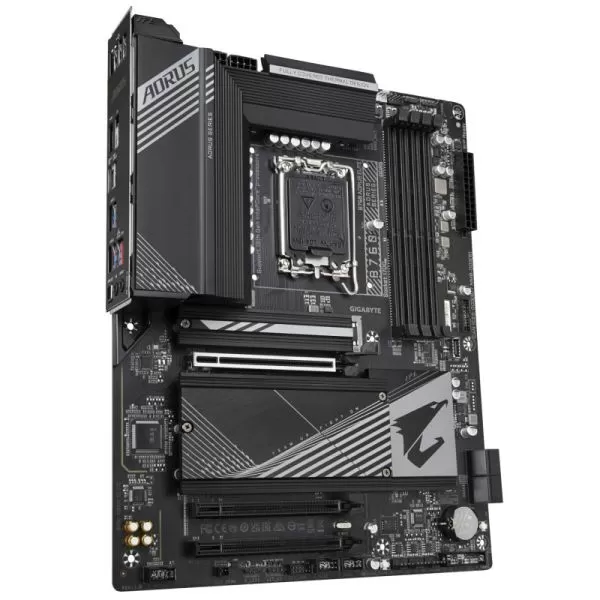

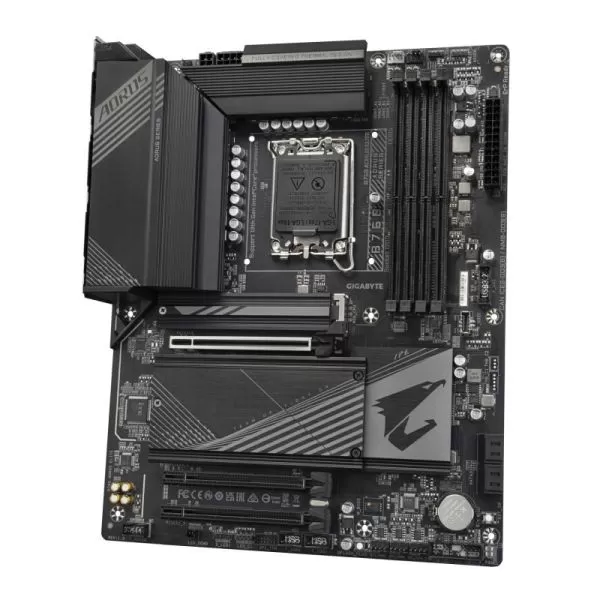

Placa de baza Gigabyte B760 AORUS ELITE, socket 1700
Produse asemanatoare
B760 AORUS ELITE (rev. 1.0) LGA1700 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1 _1, PCIEX1_2) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors https://www.gigabyte.com/Motherboard/B760-AORUS-ELITE-rev-10/sp#sp
| Caracteristici Placa de baza Gigabyte B760 AORUS ELITE, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel 12th/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 Mhz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 6 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

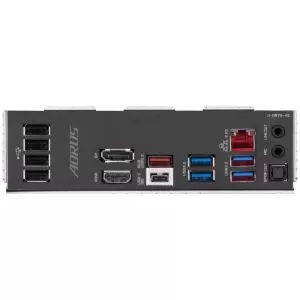

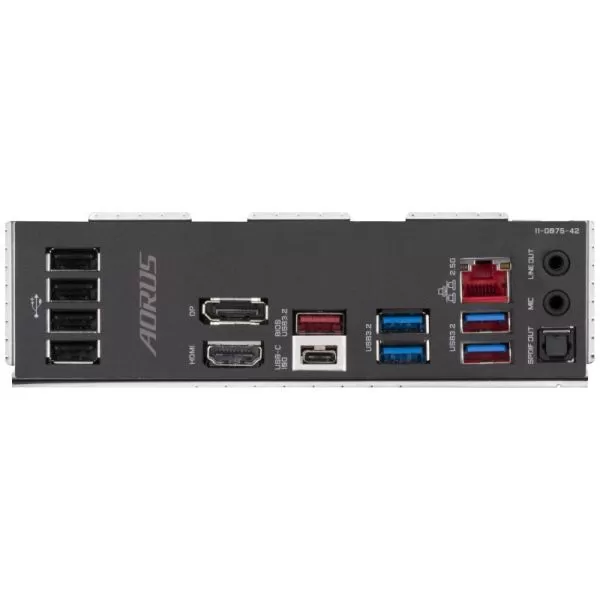

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Bluetooth | Nu |
| Format | ATX |
| Greutate Colet | 2 |
| Placa de baza Gigabyte B760 AORUS ELITE, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel 12th/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 Mhz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 6 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Bluetooth | Nu |
| Format | ATX |
| Greutate Colet | 2 |
