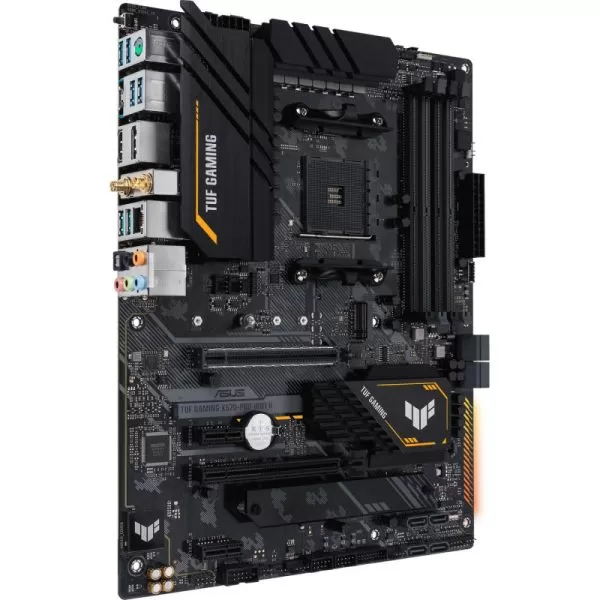

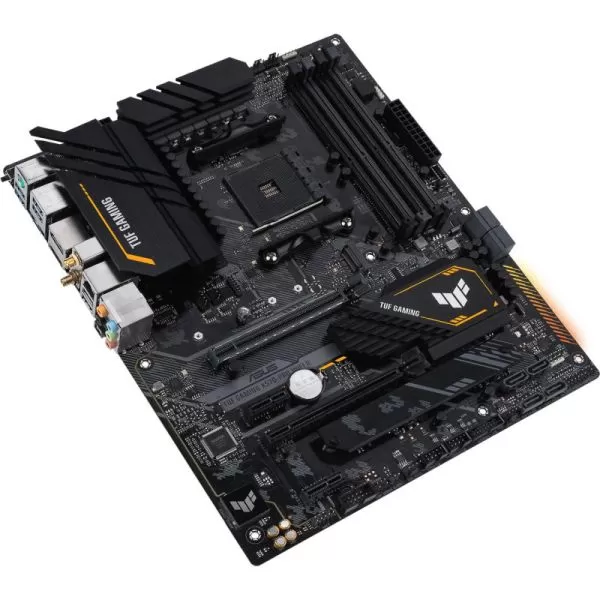

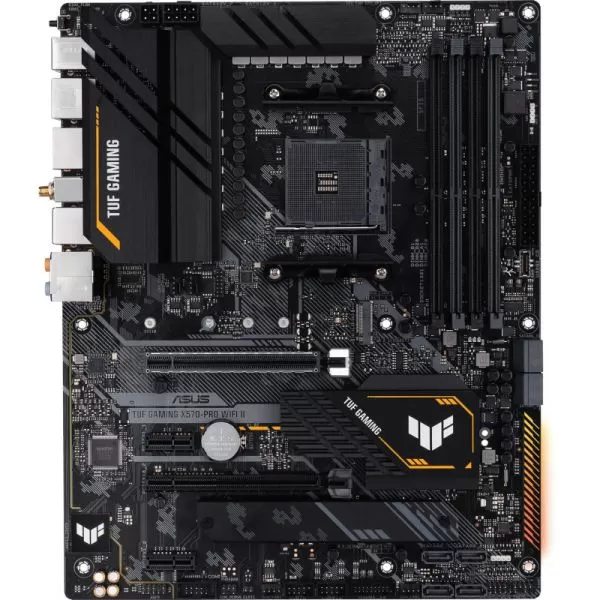

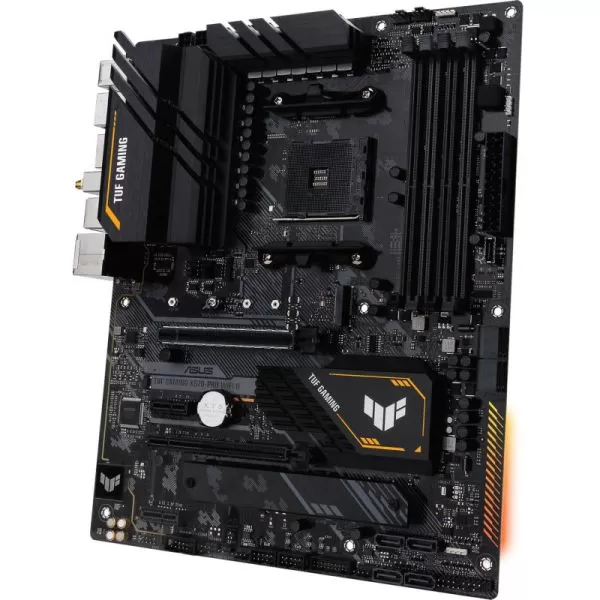

Placa de baza ASUS TUF GAMING X570-PRO WIFI II, socket AM4
Produse asemanatoare
Placa de baza Asus TUF GAMING X570-PRO (WI-FI) II AMD AM4 X570 ATX gaming motherboard with PCIe® 4.0, dual M.2, 2.5 Gb Intel® LAN, WiFi 6E, 14 DrMOS power stages, USB 3.2 Gen 2 Type-C® ports and Aura Sync RGB lighting AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G- Series, 3000 Series, 3000 G-Series, 2000 G-Series and 2000 Series desktop processors Enhanced power solution: 12+2 DrMOS power stages, six-layer PCB, ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility Next-gen connectivity: PCIe® 4.0, USB 3.2 Gen 2 Type-A and Type-C®, front-panel header for USB 3.2 Gen 1 Type-C Made for online gaming: WiFi 6E, Intel® 2.5 Gb Ethernet, TUF LANGuard technology Two-Way AI Noise Cancelation: Reduces background noise from the microphone and incoming audio for crystal-clear communication in games or video conferences Aura Sync RGB: Enables synchronized LED lighting across a vast portfolio of compatible PC gear, including addressable RGB strips
| Caracteristici Placa de baza ASUS TUF GAMING X570-PRO WIFI II, socket AM4: | |
| CPU Socket | AM4 |
| Chipset | X570 |
| Procesoare suportate | AMD AM4 Socket Ryzen 2000/3000/5000 Series |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 8 x SATA III |
| Porturi USB 3.2 | 3 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | Optical S/PDIF out, PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 2 |
| Sloturi M.2 | 2 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Greutate Colet | 2 |
| Placa de baza ASUS TUF GAMING X570-PRO WIFI II, socket AM4 | |
| CPU Socket | AM4 |
| Chipset | X570 |
| Procesoare suportate | AMD AM4 Socket Ryzen 2000/3000/5000 Series |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps Intel I225-V |
| Interfata Serial ATA | 8 x SATA III |
| Porturi USB 3.2 | 3 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 3.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | Optical S/PDIF out, PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 2 |
| Sloturi M.2 | 2 |
| Wireless | Da |
| Bluetooth | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Greutate Colet | 2 |
