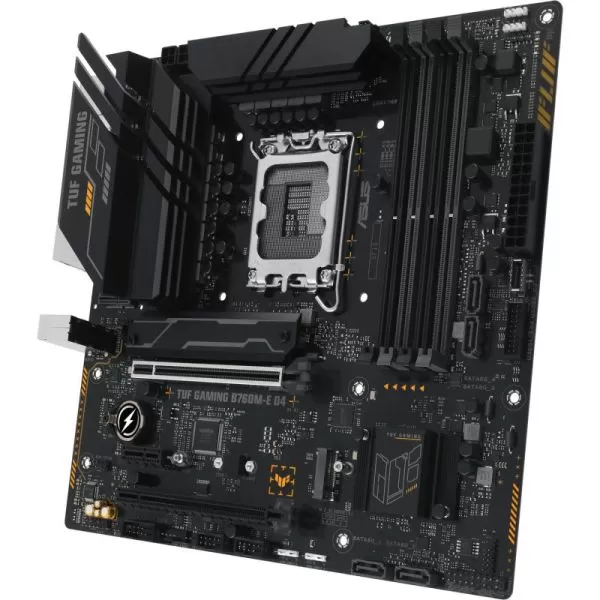

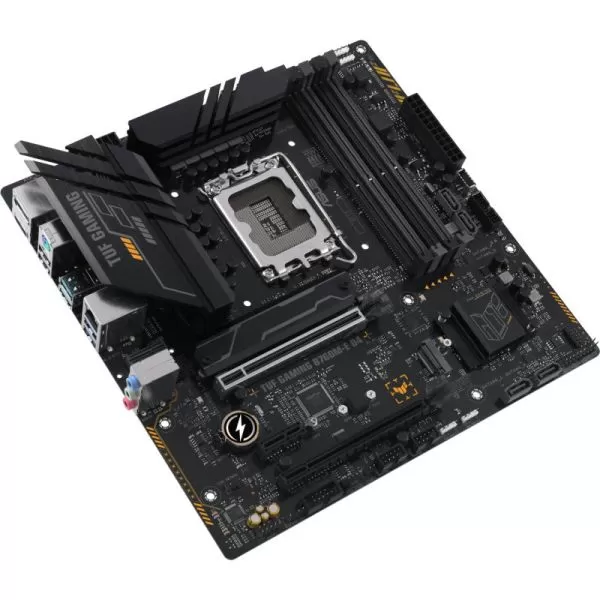

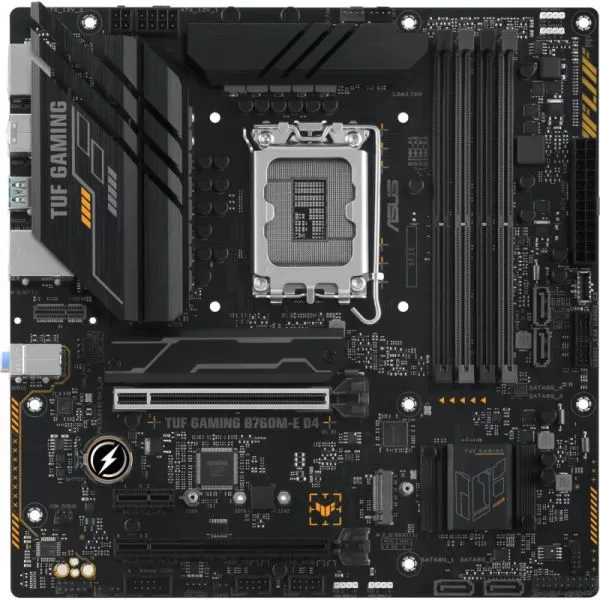

Placa de baza ASUS TUF GAMING B760M-E D4, socket 1700
Produse asemanatoare
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Chipset Intel® B760 Chipset Memory 4 x DIMM slots, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/ 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/24 00/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
| Caracteristici Placa de baza ASUS TUF GAMING B760M-E D4, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel 12th/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

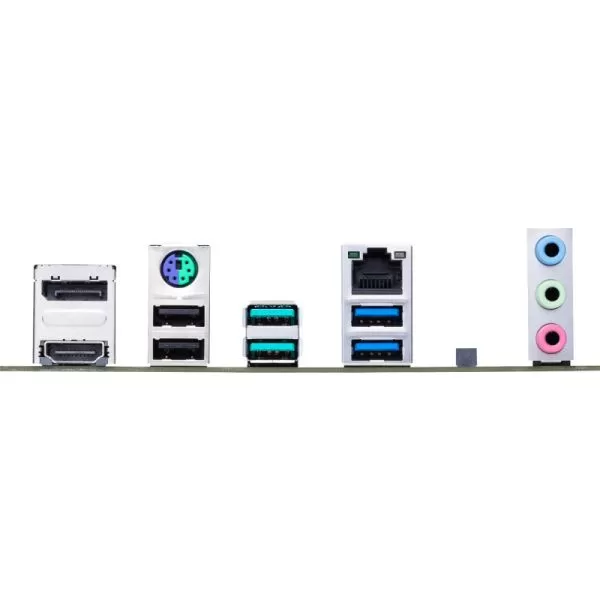

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi M.2 | 2 |
| Wireless | Nu |
| Format | Micro ATX |
| Greutate Colet | 2 |
| Placa de baza ASUS TUF GAMING B760M-E D4, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel 12th/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 5, 10 |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi M.2 | 2 |
| Wireless | Nu |
| Format | Micro ATX |
| Greutate Colet | 2 |
