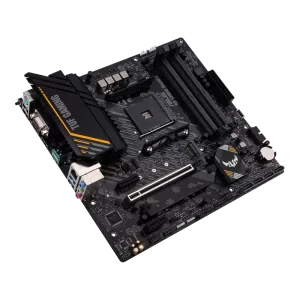

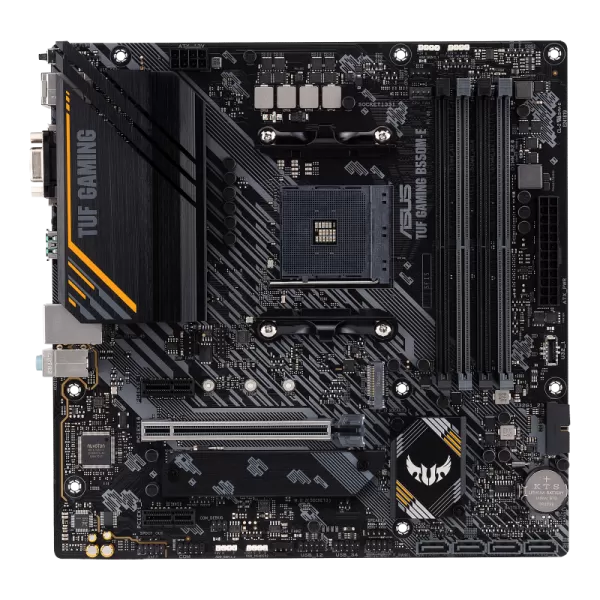

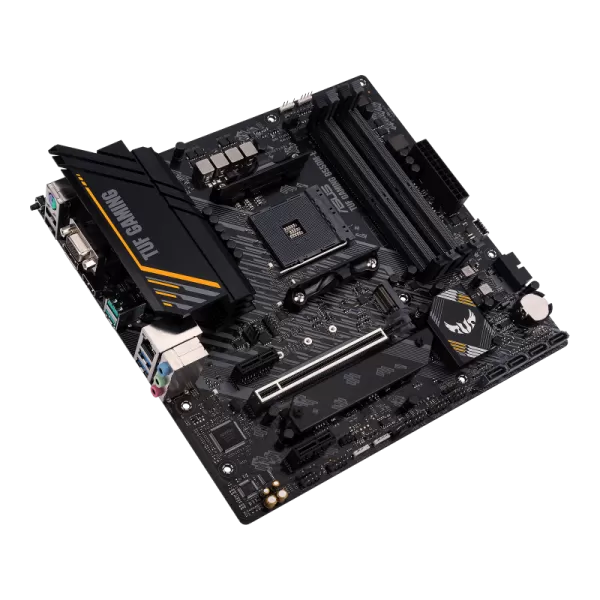

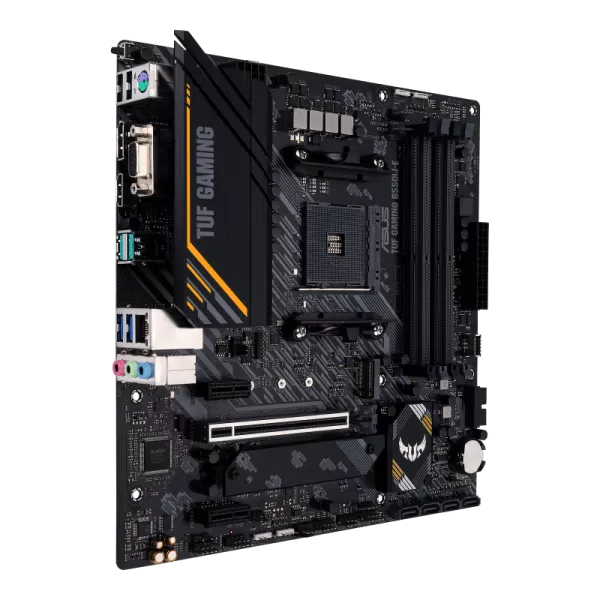

Placa de baza ASUS TUF GAMING B550M-E, Socket AM4
Produse asemanatoare
Placa de baza Asus TUF GAMING B550M-E AM4 AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, DisplayPort, HDMI, D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Enhanced Power Solution: Alloy Chokes, military-grade TUF components, and DIGI+ VRM for maximum durability Comprehensive Cooling: Large VRM heatsink, M.2 heatsink, PCH fanless heatsink, hybrid fan headers, and Fan Xpert 2+ utility Ultrafast Connectivity: Dual M.2, PCIe 4.0, USB 3.2 Gen 2 Type-A, and front USB 3.2 Gen 1 Type-C® support Made for Online Gaming: 1 Gb Ethernet, TUF LANGuard and Turbo LAN technology Aura Sync RGB Lighting: Onboard addressable Gen 2 headers and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware https://www.asus.com/Motherboards-Components/Motherboards/TUF- Gaming/TUF-GAMING-B550M-E/
| Caracteristici Placa de baza ASUS TUF GAMING B550M-E, Socket AM4: | |
| CPU Socket | AM4 |
| Chipset | B550 |
| Procesoare suportate | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| Audio integrat | Realtek ALC887/897 |
| LAN integrat | 10/100/1000 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | 1 |
| DVI | Nu |
| DisplayPort | DP |

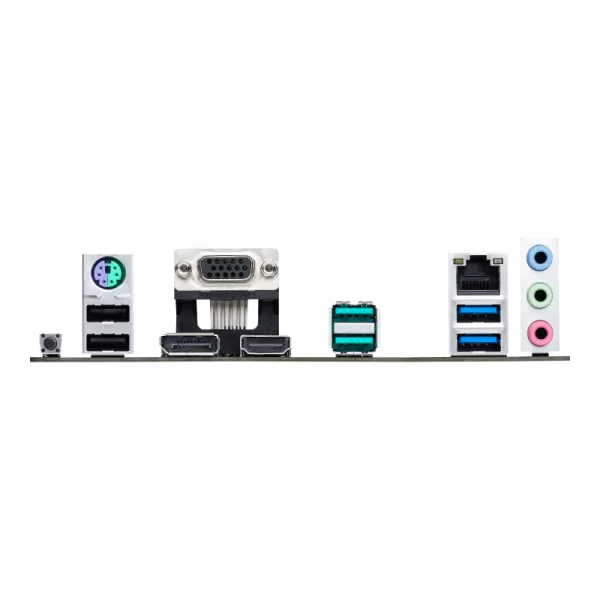

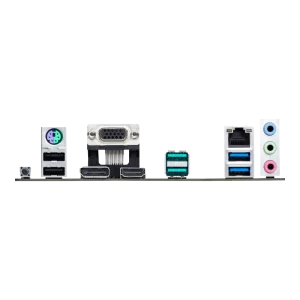

| Porturi externe | PS/2 keyboard/mouse, RJ-45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Wireless | Nu |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 |
| Greutate Colet | 1 |
| Placa de baza ASUS TUF GAMING B550M-E, Socket AM4 | |
| CPU Socket | AM4 |
| Chipset | B550 |
| Procesoare suportate | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| Audio integrat | Realtek ALC887/897 |
| LAN integrat | 10/100/1000 Mbps Realtek |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | 1 |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ-45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Wireless | Nu |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 |
| Greutate Colet | 1 |
