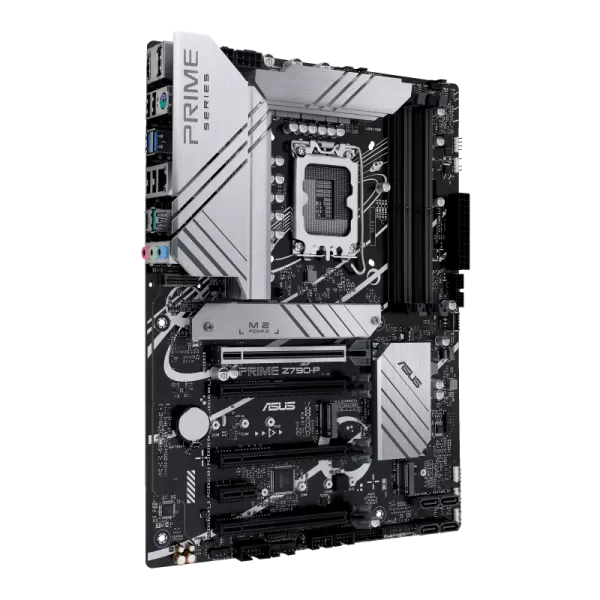

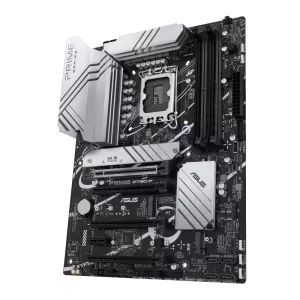

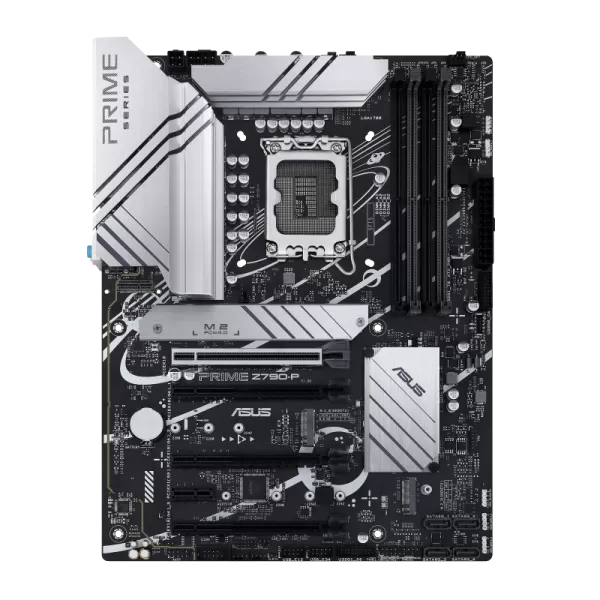

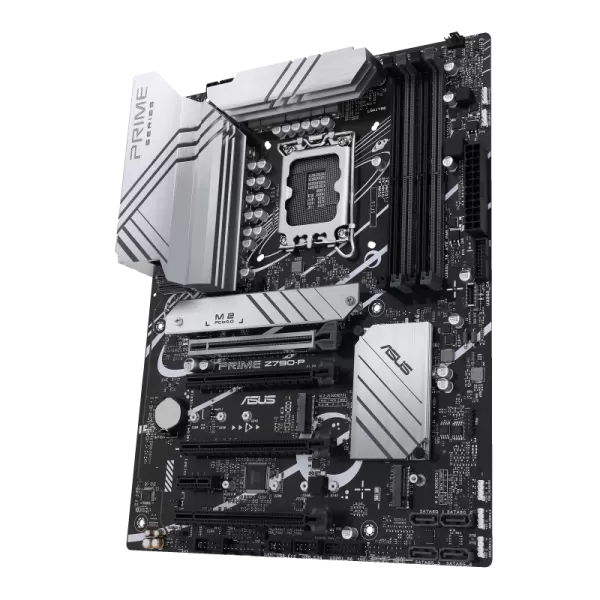

Placa de baza ASUS PRIME Z790-P-CSM, socket 1700

Placa de baza Asus PRIME Z790-P-CSM DDR5 LGA1700 CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z790 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non- ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb Ethernet Wireless & Bluetooth Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. https://www.asus.com/motherboards-components/motherboards/prime/prime- z790-p-csm/techspec/

Caracteristici Placa de baza ASUS PRIME Z790-P-CSM, socket 1700:
CPU Socket	1700
Chipset	Z790
Procesoare suportate	Intel 12/13th Generation Core/Pentium Gold/Celeron
Memorii suportate	DDR5
Sloturi memorie	4
Suport Dualchannel	Da
Frecventa memorie (MHz)	7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800
Memorie maxima suportata (GB)	128
Video integrat	Da
Slot video	PCI Express
Tip video integrat	Necesita procesor cu tehnologia Intel HD Graphics
Audio integrat	Realtek
LAN integrat	100/1000/2500 Mbps Realtek
Interfata Serial ATA	4 x SATA III
Porturi USB 3.2	4
Tip port USB 3.1/3.2	Type-A & Type-C
Porturi USB 2.0	4
HDMI	1
VGA	Nu
DVI	Nu
DisplayPort	DP

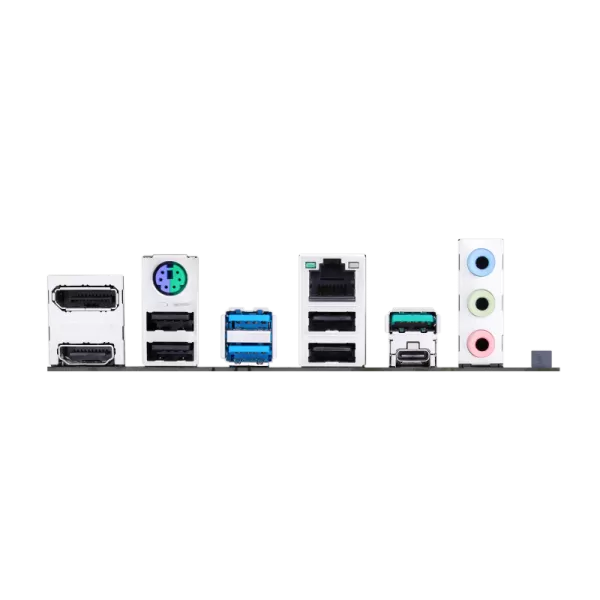

Porturi externe	PS/2 keyboard/mouse, RJ45, Audio
Sloturi PCI-E x1	1
Sloturi PCI-E x16	4
Sloturi M.2	3
Wireless	Nu
Format	ATX
Dimensiuni (L x l, cm)	30.5 x 23.4 cm
Greutate Colet	2
