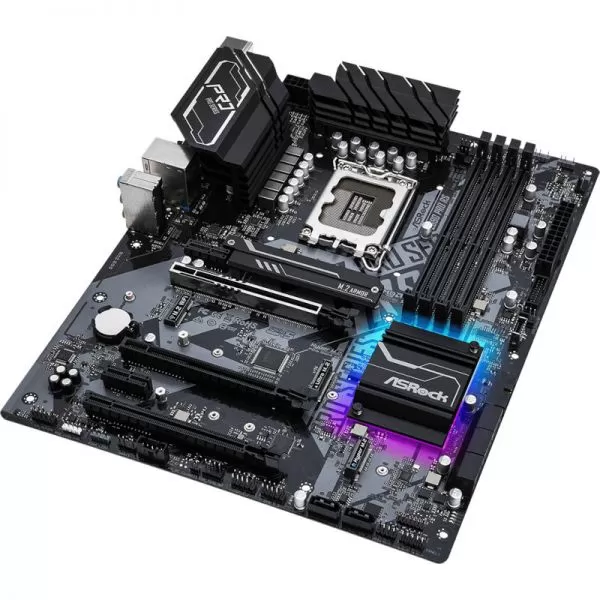

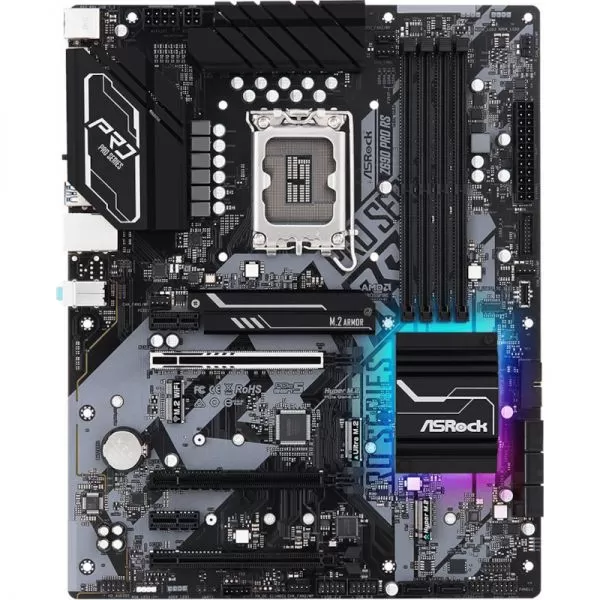

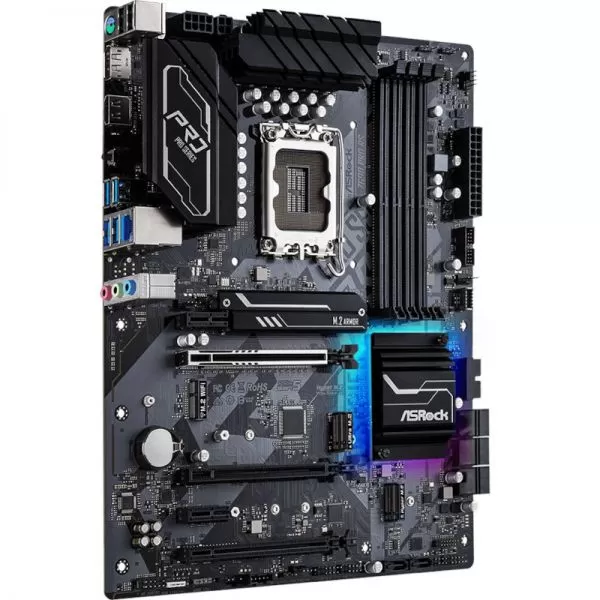

Placa de baza Asrock Z690 PRO RS, socket 1700
Cod produs: Z690 PRO RS
ID produs: 402448
Produsul nu mai face parte din oferta
Garantie conformitate:
24 luni
Garantie PF:
36 luni
Garantie PJ:
36 luni
Cost transport prin Fan Courier:
Cere Info:
(031) 405.23.59
Produse asemanatoare
Placa de baza Asrock Z690 PRO RS LGA 1700 Supports 12th Gen Intel® Core™ Processors (LGA1700) 13 Phase Dr.MOS Power Design Supports DDR4 5000MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1 1 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 8 SATA3 2 Hyper M.2 (PCIe Gen4 x4) 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 1 USB 3.2 Gen2x2 Front Type-C 2 USB 3.2 Gen2 (Rear) 6 USB 3.2 Gen1 (2 Rear, 4 Front) Dragon 2.5G LAN ASRock Graphics Card Holder https://www.asrock.com/MB/Intel/Z690%20Pro%20RS/index.asp
| Caracteristici Placa de baza Asrock Z690 PRO RS, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Dragon RTL8125BG |
| Interfata Serial ATA | 8 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

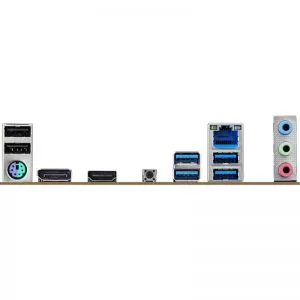

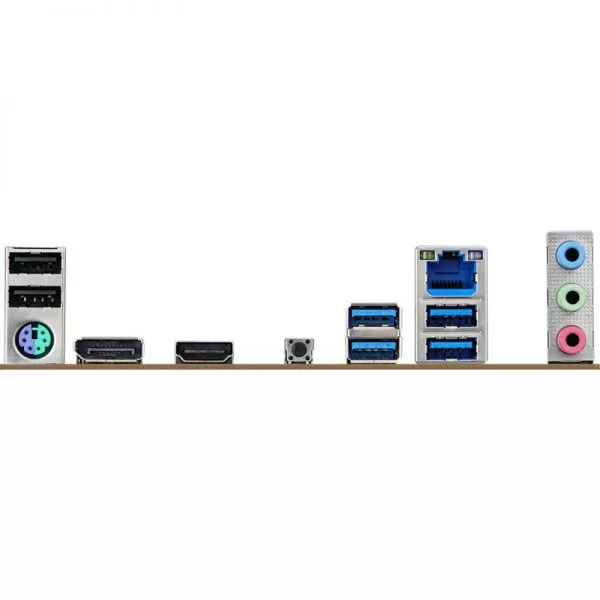

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 3 (x16) |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Format | ATX |
| Greutate Colet | 2 |
Produsul a fost adaugat pe site in data de 15.03.2022
| Placa de baza Asrock Z690 PRO RS, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek ALC897 |
| LAN integrat | 10/100/1000/2500 Mbps Dragon RTL8125BG |
| Interfata Serial ATA | 8 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 3 (x16) |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Format | ATX |
| Greutate Colet | 2 |
