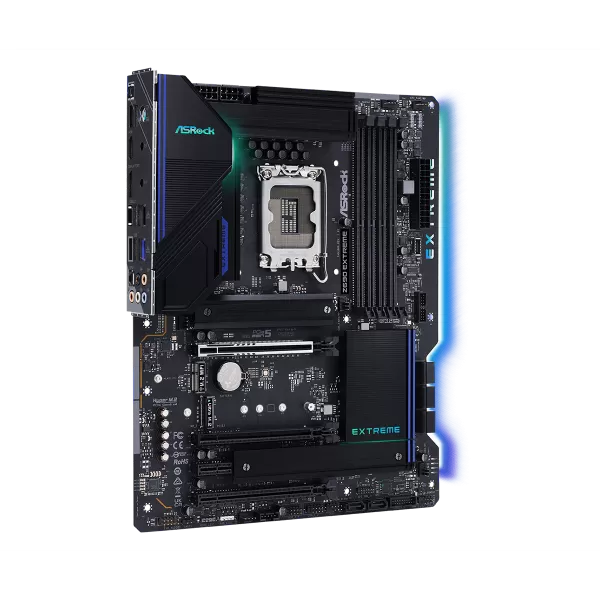

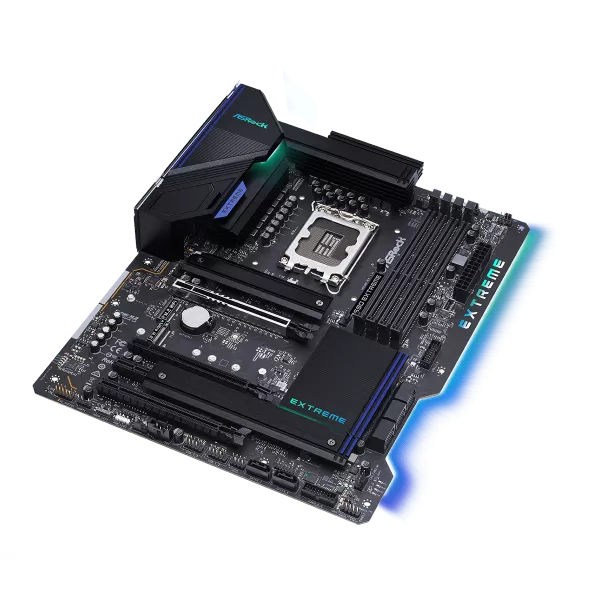

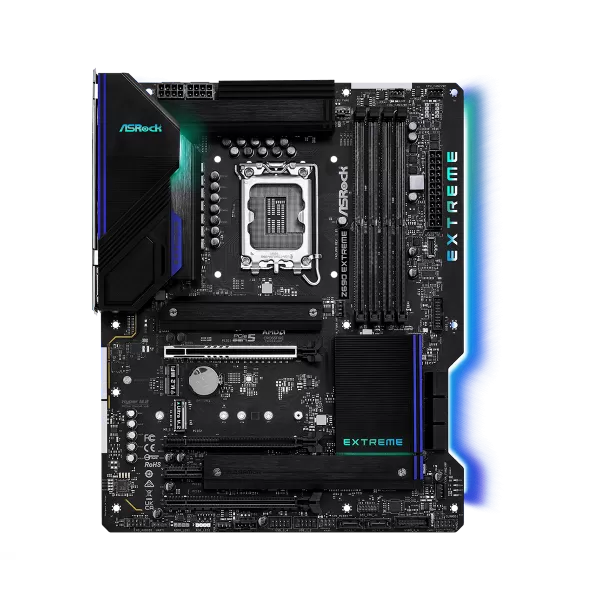

Placa de baza AsRock Z690 EXTREME, Socket 1700
Cod produs: Z690 EXTREME
ID produs: 398466
Produsul nu mai face parte din oferta
Garantie conformitate:
24 luni
Garantie PF:
36 luni
Garantie PJ:
36 luni
Cost transport prin Fan Courier:
Cere Info:
(031) 405.23.59
Produse asemanatoare
Placa de baza Asrock Z690 Extreme D4 LGA 1700 Supports 12th Gen Intel® Core™ Processors (LGA1700) 13 Phase SPS Dr.MOS Power Design Supports DDR4 5000MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 8 SATA3 2 Hyper M.2 (PCIe Gen4 x4) 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 1 USB 3.2 Gen2x2 Front Type-C 2 USB 3.2 Gen2 (Rear Type A+C) 8 USB 3.2 Gen1 (4 Rear, 4 Front) Dragon 2.5G LAN, Intel® Gigabit LAN ASRock Graphics Card Holder https://www.asrock.com/mb/Intel/Z690%20Extreme/index.asp
| Caracteristici Placa de baza AsRock Z690 EXTREME, Socket 1700: | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC1220 |
| LAN integrat | 10/100/1000/2500 Mbps Dragon RTL8125BG |
| Interfata Serial ATA | 8 x SATA III |
| Porturi USB 3.2 | 6 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

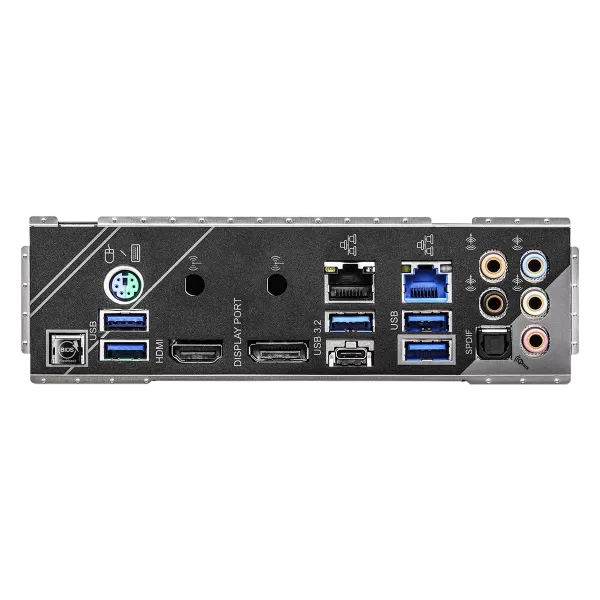

| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Bluetooth | Nu |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
Produsul a fost adaugat pe site in data de 23.11.2021
| Placa de baza AsRock Z690 EXTREME, Socket 1700 | |
| CPU Socket | 1700 |
| Chipset | Z690 |
| Procesoare suportate | Intel 12th Generation Core/Pentium/Celeron |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia Intel HD Graphics |
| Audio integrat | Realtek ALC1220 |
| LAN integrat | 10/100/1000/2500 Mbps Dragon RTL8125BG |
| Interfata Serial ATA | 8 x SATA III |
| Porturi USB 3.2 | 6 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, Optical S/PDIF Out, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 3 |
| Wireless | Nu |
| Bluetooth | Nu |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 |
| Greutate Colet | 1.5 |
