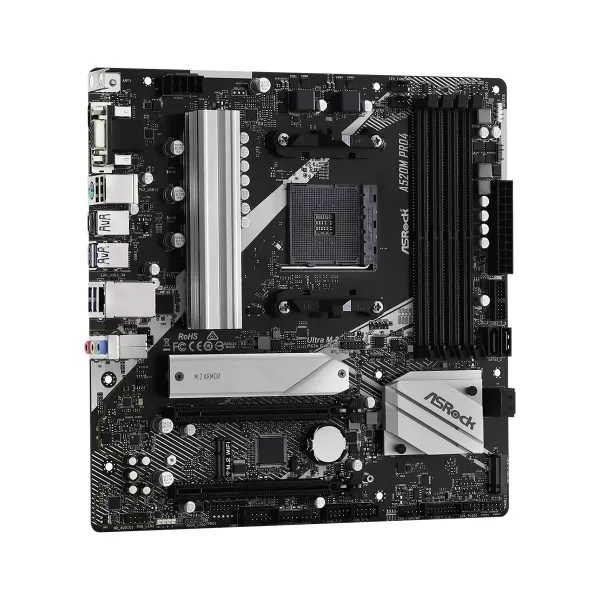

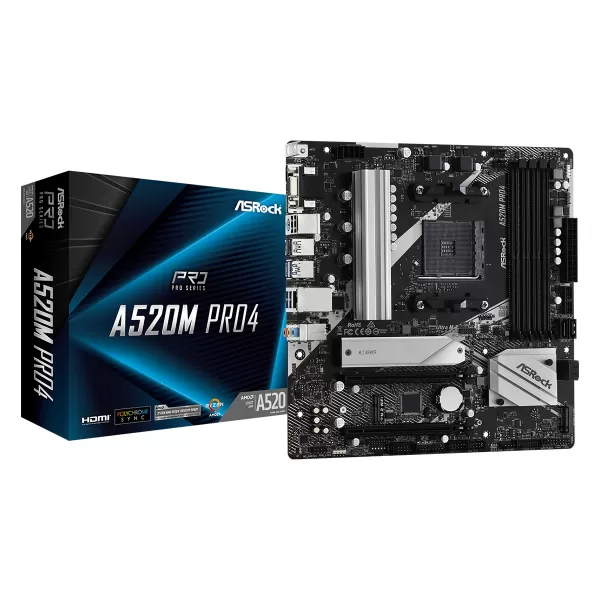

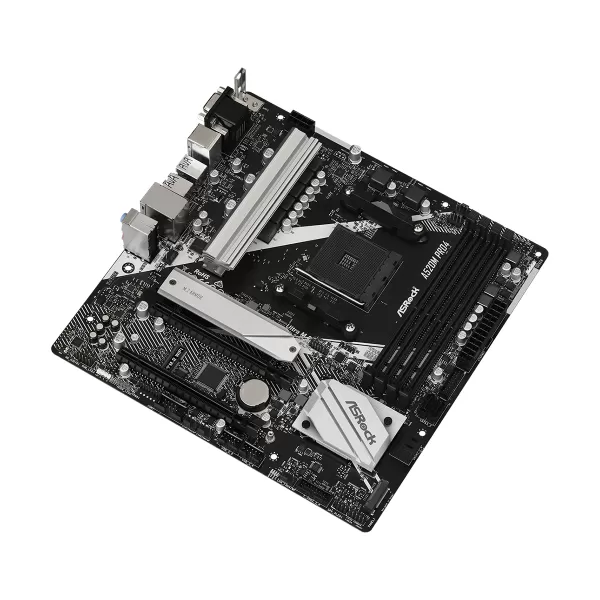

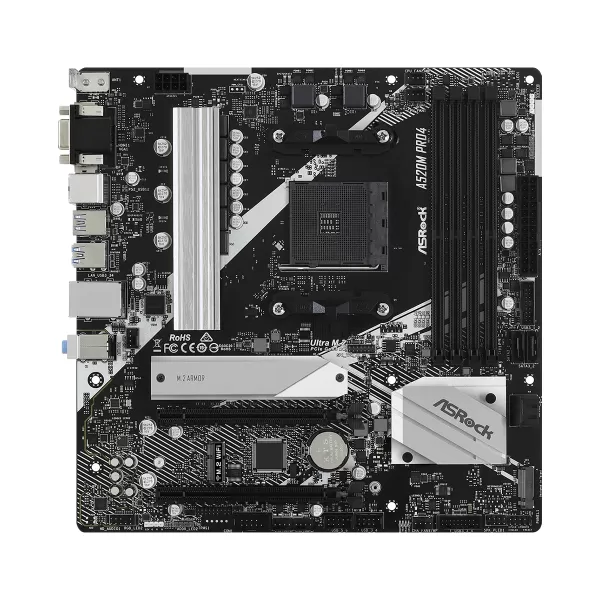

Placa de baza ASRock A520M PRO4, Socket AM4
Cod produs: A520M PRO4
ID produs: 363007
Produsul nu mai face parte din oferta
Garantie conformitate:
24 luni
Garantie PF:
24 luni
Garantie PJ:
24 luni
Cost transport prin Fan Courier:
Cere Info:
(031) 405.23.59
Produse asemanatoare
Placa de baza AsRock A520M PRO4 AM4 Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors 8 Power Phase Design, Digi Power Supports DDR4 4733+ (OC) 2 x PCIe 3.0 x16, 1 x M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3) 10 x USB 3.2 Gen1(5 x Rear, 1 x Rear Type-C, 4 x Front) Realtek Gigabit LAN https://www.asrock.com/MB/AMD/A520M%20Pro4/index.asp#Specification
| Caracteristici Placa de baza ASRock A520M PRO4, Socket AM4: | |
| CPU Socket | AM4 |
| Chipset | A520 |
| Procesoare suportate | AMD AM4 Socket Ryzen 5000 Series/ AMD Ryzen 3000 Series AMD Ryzen 4000 G-Series |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4733+(O.C) / 4600+(O.C) / 4400(O.C) / 4266(O.C) / 4133(O.C) / 4000(O.C) / 3866(O.C) / 3733(O.C) / 3600(O.C) / 3466(O.C) / 3400(O.C) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| Audio integrat | 7.1 Audio with Realtek ALC1200 |
| LAN integrat | 10/100/1000 Mbps Realtek RTL8111H |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Porturi USB 3.2 | 10 |
| Tip port USB 3.1/3.2 | Type-C |
| Porturi USB 3.0 | 5 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | 1 |
| DisplayPort | DP |

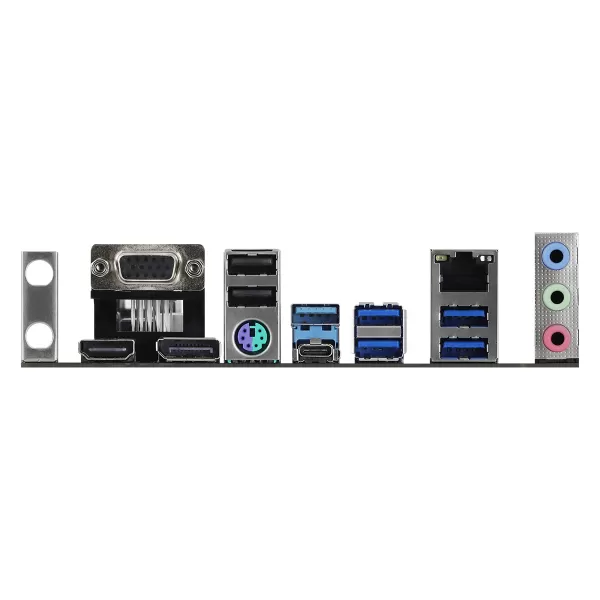

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x2 | 1 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 cm |
| Greutate Colet | 1 |
Produsul a fost adaugat pe site in data de 17/03/2021
| Placa de baza ASRock A520M PRO4, Socket AM4 | |
| CPU Socket | AM4 |
| Chipset | A520 |
| Procesoare suportate | AMD AM4 Socket Ryzen 5000 Series/ AMD Ryzen 3000 Series AMD Ryzen 4000 G-Series |
| Memorii suportate | DDR4 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 4733+(O.C) / 4600+(O.C) / 4400(O.C) / 4266(O.C) / 4133(O.C) / 4000(O.C) / 3866(O.C) / 3733(O.C) / 3600(O.C) / 3466(O.C) / 3400(O.C) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Video integrat | Da |
| Slot video | PCI Express |
| Tip video integrat | Necesita procesor cu tehnologia AMD Radeon Vega Graphics |
| Audio integrat | 7.1 Audio with Realtek ALC1200 |
| LAN integrat | 10/100/1000 Mbps Realtek RTL8111H |
| Interfata Serial ATA | 4 x SATA III |
| RAID integrat | 0, 1, 10 |
| Porturi USB 3.2 | 10 |
| Tip port USB 3.1/3.2 | Type-C |
| Porturi USB 3.0 | 5 |
| Porturi USB 2.0 | 2 |
| HDMI | 1 |
| VGA | 1 |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x2 | 1 |
| Sloturi PCI-E x16 | 1 |
| Sloturi M.2 | 2 |
| Format | Micro ATX |
| Dimensiuni (L x l, cm) | 24.4 x 24.4 cm |
| Greutate Colet | 1 |
