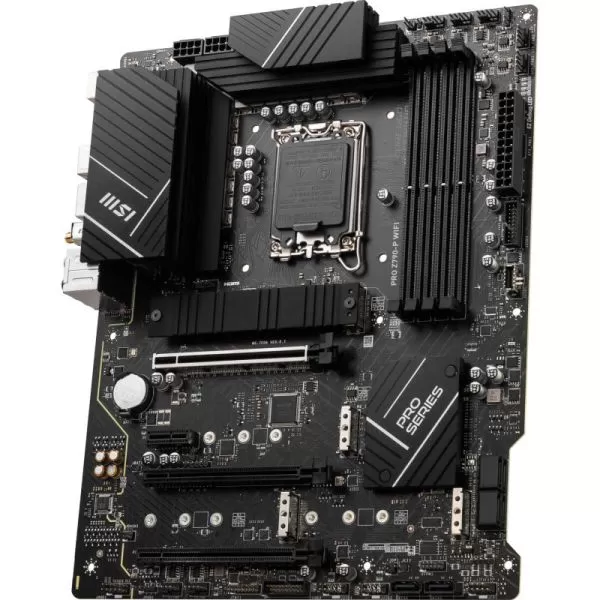

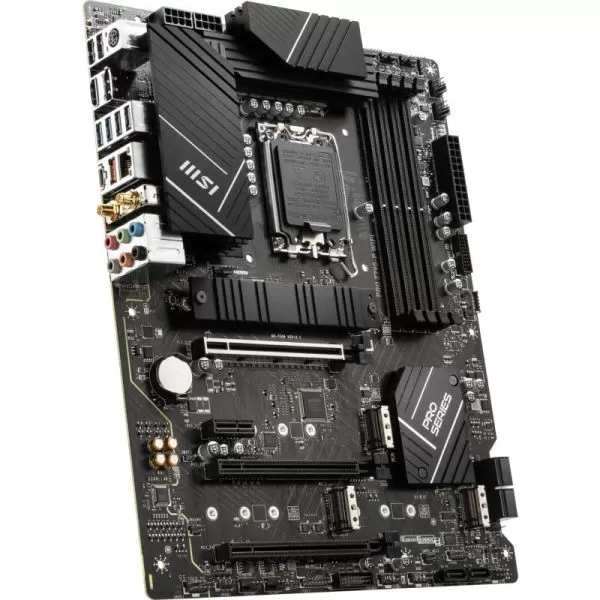

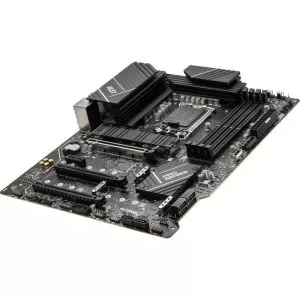

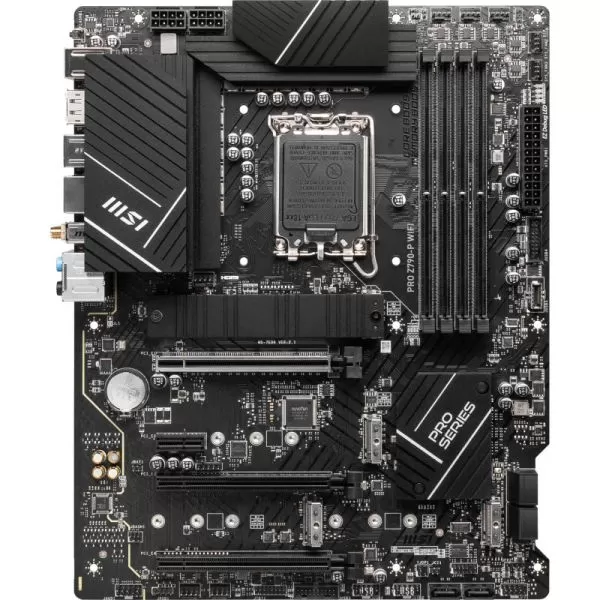

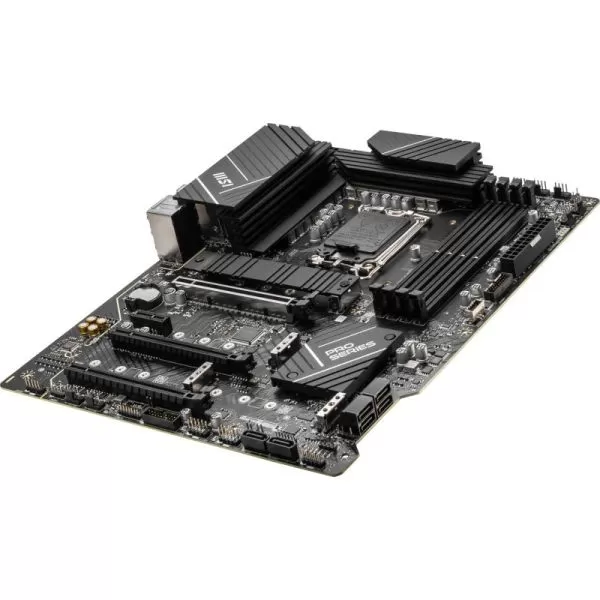

Placa de baza MSI PRO Z790-P WIFI, socket 1700
Placa de baza MSI PRO Z790-P LGA 1700 WIFI SPECIFICATIONS Model Name PRO Z790-P WIFI CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® Z790 Chipset Expansion Slots 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x16 slot 2x PCIe 3.0 x1 slots Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 7000+MHz (OC) Storage 4x M.2 Gen4 x4 64Gbps slots, 6x SATA 6Gbps ports USB ports 1x USB 3.2 Gen 2x2 20G (1 Type-C), 2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C), 6x USB 3.2 Gen 1 5Gbps (6 Type-A), 8x USB 2.0 LAN Intel® 2.5G LAN WiFi / BT Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost
| Caracteristici Placa de baza MSI PRO Z790-P WIFI, socket 1700: | |
| CPU Socket | 1700 |
| Chipset | Z790 |
| Procesoare suportate | Intel 12/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |

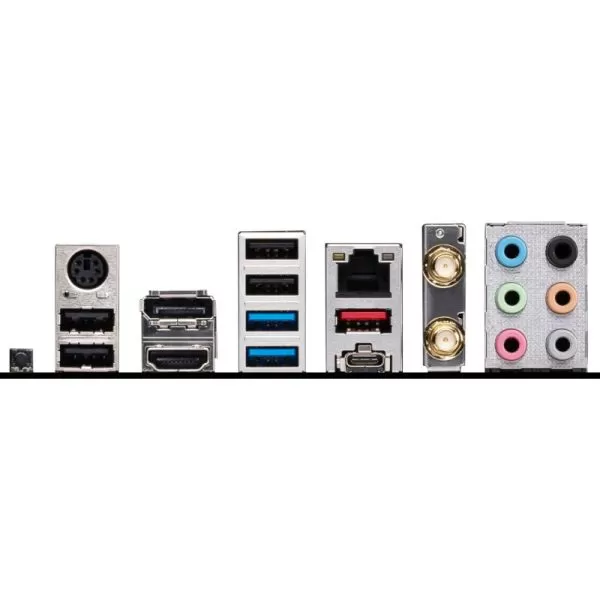

| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 4 |
| Wireless | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Greutate Colet | 2 |
| Placa de baza MSI PRO Z790-P WIFI, socket 1700 | |
| CPU Socket | 1700 |
| Chipset | Z790 |
| Procesoare suportate | Intel 12/13th Generation Core/Pentium Gold/Celeron |
| Memorii suportate | DDR5 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz |
| Memorie maxima suportata (GB) | 128 |
| Video integrat | Da |
| Slot video | PCI Express |
| Audio integrat | Realtek |
| LAN integrat | 10/100/1000/2500 Mbps Realtek |
| Interfata Serial ATA | 6 x SATA III |
| Porturi USB 3.2 | 4 |
| Tip port USB 3.1/3.2 | Type-A & Type-C |
| Porturi USB 2.0 | 4 |
| HDMI | 1 |
| VGA | Nu |
| DVI | Nu |
| DisplayPort | DP |
| Porturi externe | PS/2 keyboard/mouse, RJ45, Audio |
| Sloturi PCI-E x1 | 1 |
| Sloturi PCI-E x16 | 3 |
| Sloturi M.2 | 4 |
| Wireless | Da |
| Format | ATX |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Greutate Colet | 2 |
